Dynamic dV/dt Rating IRFP240PBF Power Mosfet Transistor Fast switching power mosfet

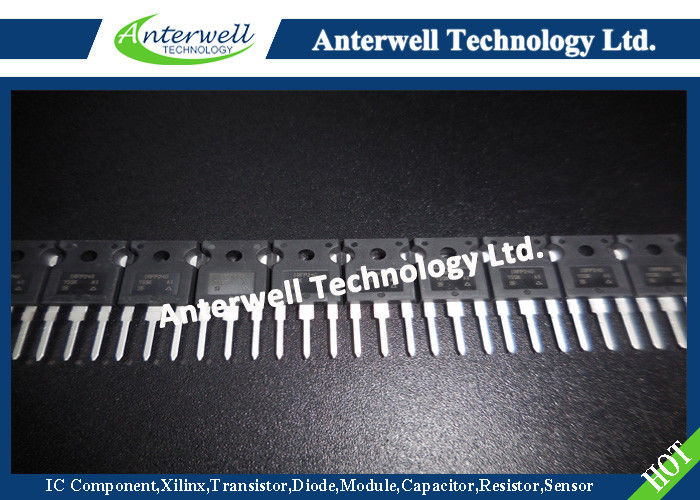

: Large Image : Dynamic dV/dt Rating IRFP240PBF Power Mosfet Transistor Fast switching power mosfet

Product Details:

Place of Origin:	original factory
Brand Name:	Anterwell
Certification:	new & original
Model Number:	IRFP240PBF

Payment & Shipping Terms:

Minimum Order Quantity:	10pcs
Price:	Negotiate
Packaging Details:	Please contact me for details
Delivery Time:	1 day
Payment Terms:	T/T, Western Union, Paypal
Supply Ability:	9500pcs

Contact Now

Detailed Product Description

Drain-Source Voltage:	200 V	Gate-Source Voltage:	± 20 V
Pulsed Drain Current:	80 A	Linear Derating Factor:	1.2 W/°C
Single Pulse Avalanche Energy:	510 MJ	Maximum Power Dissipation:	150 W
Highlight:	multi emitter transistor , silicon power transistors

IRFP240, SiHFP240

Power MOSFET

FEATURES

• Dynamic dV/dt Rating

• Repetitive Avalanche Rated

• Isolated Central Mounting Hole

• Fast Switching

• Ease of Paralleling

• Simple Drive Requirements

• Lead (Pb)-free Available

DESCRIPTION

Third generation Power MOSFETs from Vishay provide the designer with the best combination of fast switching, ruggedized device design, low on-resistance and cost-effectiveness.

The TO-247 package is preferred for commercial-industrial applications where higher power levels preclude the use of TO-220 devices. The TO-247 is similar but superior to the earlier TO-218 package because its isolated mounting hole. It also provides greater creepage distances between pins to meet the requirements of most safety specifications.

Dynamic dV/dt Rating IRFP240PBF Power Mosfet Transistor Fast switching power mosfet

ABSOLUTE MAXIMUM RATINGS T_C = 25 °C, unless otherwise noted

PARAMETER			SYMBOL	LIMIT	UNIT
Drain-Source Voltage			V_DS	200	V
Gate-Source Voltage			V_GS	± 20	V
Continuous Drain Current	V_GS at 10 V	T_C = 25 °C	I_D	20	A
Continuous Drain Current	V_GS at 10 V	T_C = 100 °C	I_D	12	A
Pulsed Drain Current^a			I_DM	80	A
Linear Derating Factor				1.2	W/°C
Single Pulse Avalanche Energy^b			E_AS	510	mJ
Repetitive Avalanche Current^a			I_AR	20	A
Repetitive Avalanche Energy^a			E_AR	15	mJ
Maximum Power Dissipation		T_C = 25 °C	P_D	150	W
Peak Diode Recovery dV/dt^c			dV/dt	5.0	V/ns
Operating Junction and Storage Temperature Range			T_J, Tstg	- 55 to + 150	°C
Soldering Recommendations (Peak Temperature)		for 10 s		300^d	°C
Mounting Torque		6-32 or M3 screw		10	lbf · in
Mounting Torque		6-32 or M3 screw		1.1	N · m

Notes

a. Repetitive rating; pulse width limited by maximum junction temperature (see fig. 11).

b. V_DD = 50 V, starting T_J = 25 °C, L = 1.9 mH, R_G = 25 Ω, I_AS= 20 A (see fig. 12).

c. I_SD ≤ 18 A, dI/dt ≤ 150 A/µs, V_DD ≤ V_DS, T_J≤ 150 °C.

d. 1.6 mm from case.
