Product Details:
Payment & Shipping Terms:
|
| DC Supply Voltage Range: | −0.5 To +18.0 V | T Input Or Output Voltage Range (DC Or Transient): | −0.5 To VDD + 0.5 V |
|---|---|---|---|
| Input Or Output Current (DC Or Transient) Per Pin: | ±10 MA | Power Dissipation, Per Package (Note 1): | 500 MW |
| Ambient Temperature Range: | −55 To +125 °C | ||
| Highlight: | ic programmer circuit,programmable audio chip |
||
Features
• Supply Voltage Range = 3.0 Vdc to 18 Vdc
• All Outputs Buffered
• Capable of Driving Two Low−power TTL Loads or One Low−power Schottky TTL Load Over the Rated Temperature Range.
• Double Diode Protection on All Inputs Except: Triple Diode Protection on MC14011B and MC14081B
• Pin−for−Pin Replacements for Corresponding CD4000 Series B Suffix Devices
• Pb−Free Packages are Available*

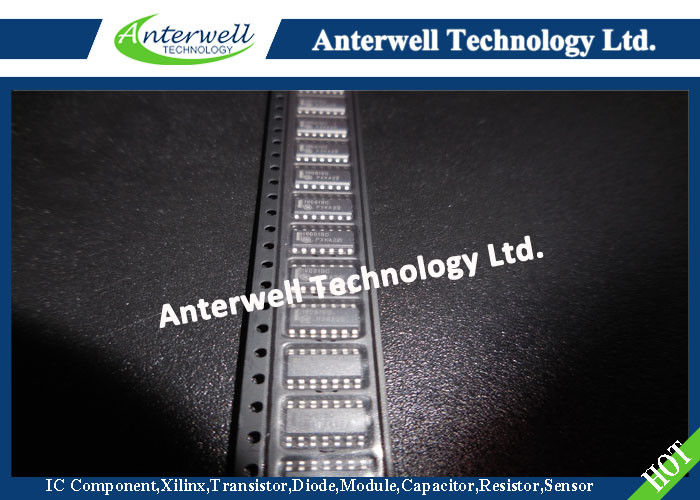

The B Series logic gates are constructed with P and N channel enhancement mode devices in a single monolithic structure (Complementary MOS). Their primary use is where low power dissipation and/or high noise immunity is desired.
MAXIMUM RATINGS (Voltages Referenced to VSS)
| Symbol | Parameter | Value | Unit |
| VDD | DC Supply Voltage Range | −0.5 to +18.0 | V |
| Vin, Vout | Input or Output Voltage Range (DC or Transient) | −0.5 to VDD + 0.5 | V |
| Iin, Iout | Input or Output Current (DC or Transient) per Pin | ±10 | mA |
| PD | Power Dissipation, per Package | 500 | mWTA |
| TA | Ambient Temperature Range | −55 to +125 | °C |
| Tstg | Storage Temperature Range | −65 to +150 | °C |
| TL | Lead Temperature (8−Second Soldering) | 260 | °C |
