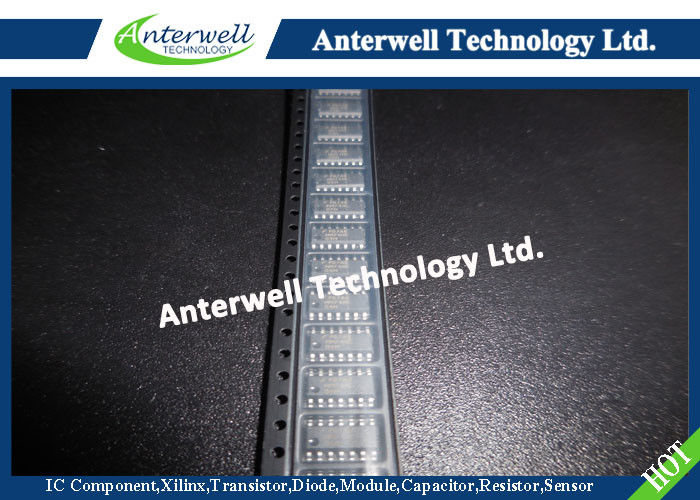

MM74HC04MX Programmable IC Chips Hex Inverter original new thyristor t1081n60toh

MM74HC04MX Hex Inverter original new thyristor t1081n60toh

Features

■ Typical propagation delay: 8 ns

■ Fan out of 10 LS-TTL loads

■ Quiescent power consumption: 10 µW maximum at room temperature

■ Low input current: 1 µA maximum

General Description The MM74HC04 inverters utilize advanced silicon-gate CMOS technology to achieve operating speeds similar to LS-TTL gates with the low power consumption of standard CMOS integrated circuits.

The MM74HC04 is a triple buffered inverter. It has high noise immunity and the ability to drive 10 LS-TTL loads. The 74HC logic family is functionally as well as pin-out compatible with the standard 74LS logic family. All inputs are protected from damage due to static discharge by internal diode clamps to VCC and ground.

Ordering Code:
