Product Details:
Payment & Shipping Terms:
|
| I² T Value For Fusing: | 340 A² S | Critical Rate Of Rise Of On-state Current: | 50 A/µs |
|---|---|---|---|
| Peak Gate Current: | 4 A | Average Gate Power Dissipation: | 1 W |
| Storage Junction Temperature: | - 40 To + 150°C | Operating Junction Temperature: | - 40 To + 125°C |
| Highlight: | multi emitter transistor,silicon power transistors |
||

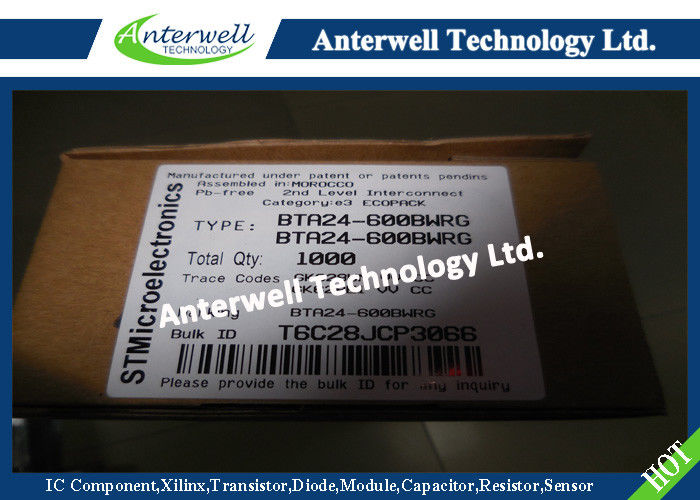

BTA24, BTB24, BTA25
BTA26, BTB26, T25
Features
■ High current triac
■ Low thermal resistance with clip bonding
■ High commutation (4 quadrant) or very high commutation (3 quadrant) capability
■ BTA series UL1557 certified (File ref: 81734)
■ Packages are RoHS (2002/95/EC) compliant
Applications
Applications include the ON/OFF function in applications such as static relays, heating regulation, induction motor starting circuits, etc., or for phase control operation in light dimmers, motor speed controllers, and silmilar.
The snubberless versions (BTA/BTB...W and T25 series) are especially recommended for use on inductive loads, due to their high commutation performances. The BTA series provides an insulated tab (rated at 2500 VRMS).
Description
Available either in through-hole or surface-mount packages, the BTA24, BTB24, BTA25, BTA26, BTB26 and T25 triac series is suitable for general purpose mains power AC switching.
Absolute maximum ratings
| Symbol | Parameter | Value | Unit | ||
|---|---|---|---|---|---|
| IT(RMS) | RMS on-state current (full sine wave) | TOP3 | Tc = 105°C | 25 | A |
| D2PAK / TO-220AB | Tc = 100°C | ||||
| RD91 Ins/ TOP3 Ins. | Tc = 100°C | ||||
| TO-220AB Ins. | Tc = 75°C | ||||
| ITSM | Non repetitive surge peak on-state current (full cycle, Tj initial = 25° C) | F = 50 Hz | t = 20 ms | 250 | A |
| F = 60 Hz | t = 16.7 ms | 260 | |||
| I ² t | I ² t Value for fusing | tp = 10 ms | 340 | A² s | |
| dI/dt |
Critical rate of rise of on-state current IG = 2 x IGT , tr ≤ 100 ns |
F = 120 Hz | Tj = 125°C | 50 | A/µs |
| VDSM/VRSM | Non repetitive surge peak off-state voltage | tp = 10 ms | Tj = 25°C | VDRM/VRRM + 100 | V |
| IGM | Peak gate current | tp = 20 µs | Tj = 125°C | 4 | A |
| PG(AV) | Average gate power dissipation | Tj = 125°C | 1 | W | |
|
Tstg Tj |
Storage junction temperature range Operating junction temperature range |
- 40 to + 150 - 40 to + 125 |
°C | ||
