Product Details:
Payment & Shipping Terms:
|
| Maximum Repetitive Peak Reverse Voltage: | 60 V | Working Peak Reverse Voltage: | 60 V |
|---|---|---|---|
| Maximum DC Blocking Voltage: | 60 V | Peak Repetitive Forward Current Per Leg: | 30 A |
| Operating Junction Temperature: | -55 To +150℃ | Storage Temperature: | -55 To +150℃ |
| Highlight: | bridge rectifier circuit,signal schottky diode |
||

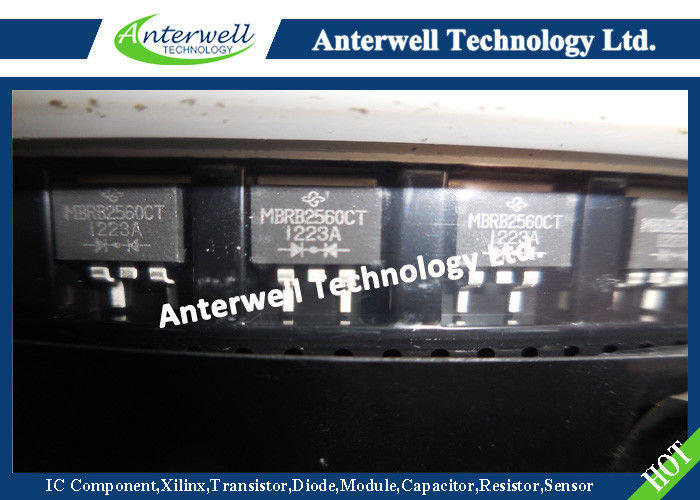

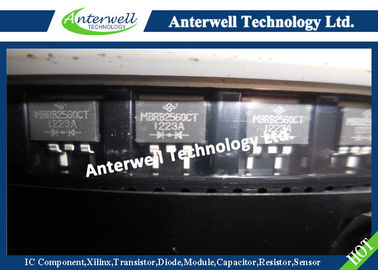

MBR25xxCT, MBRF25xxCT & MBRB25xxCT Series
Dual Schottky Barrier Rectifiers
Reverse Voltage 35 to 60 Volts
Forward Current 25.0 Amperes
Features
• Plastic package has Underwriters Laboratory Flammability Classification 94V-0
• Dual rectifier construction, positive center tap
• Metal silicon junction, majority carrier conduction
• Low power loss, high efficiency
• Guardring for overvoltage protection
• For use in low voltage, high frequency inverters, free wheeling, and polarity protection applications
• High temperature soldering guaranteed: 250°C/10 seconds, 0.25" (6.35mm) from case
• Rated for reverse surge and ESD
Mechanical Data
• Case: JEDEC TO-220AB, ITO-220AB molded plastic body
• Terminals: Plated leads, solderable per MIL-STD-750, Method 2026
• Polarity: As marked
• Mounting Position: Any
• Mounting Torque: 10 in-lbs maximum
• Weight: 0.08 ounce, 2.24 grams
Maximum Ratings and Electrical Characteristics
( TC = 25℃ unless otherwise noted )
| Parameter | Symbol |
MBR 2535CT |
MBR 2545CT |
MBR 2550CT |
MBR 2560CT |
Unit | |
|---|---|---|---|---|---|---|---|
| Maximum repetitive peak reverse voltage | VRRM | 35 | 45 | 50 | 60 | V | |
| Working peak reverse voltage | VRWM | 35 | 45 | 50 | 60 | V | |
| Maximum DC blocking voltage | VDC | 35 | 45 | 50 | 60 | V | |
|
Maximum average forward Total device rectified current at TC=130℃ Per leg |
IF(AV) |
25 12.5 |
A | ||||
| Peak repetitive forward current per leg (rated VR, sq. wave, 20KHz) at TC=130℃ | IFRM | 30 | A | ||||
| Peak forward surge current 8.3ms single half sine-wave superimposed on rated load (JEDEC Method) per leg | IFSM | 150 | A | ||||
| Peak repetitive reverse surge current per leg at tp = 2.0us, 1KHz | IRRM | 1.0 | 0.5 | A | |||
| Voltage rate of change (rated VR) | dv/dt | 10000 | V/μs | ||||
|
Maximum instantaneous forward voltage per leg(Note 4) at IF=12.5A, TC=25℃ at IF=12.5A, TC=125℃ at IF=25A, TC=25℃ at IF=25A, TC=125℃ |
VF |
- - 0.82 0.73 |
0.75 0.65 - - |
V | |||
| Maximum instantaneous reverse current at rated DC blocking voltage per leg (Note 4) | TC=25℃ | IR |
0.2 40 |
1.0 50 |
mA | ||
| TC=125℃ | |||||||
| Typical thermal resistance from junction to case per leg | RθJC | MBR 1.5 / MBRF 4.5 / MBRB 1.5 | ℃/W | ||||
| RMS Isolation voltage (MBRF type only) from terminals to heatsink with t = 1.0 second, RH ≤ 30% | VISOL |
4500 (Note 1) 3500 (Note 2) 1500 (Note 3) |
V | ||||
| Operating junction temperature range | TJ | -55 to +150 | ℃ | ||||
| Storage temperature range | TSTG | -55 to +150 | ℃ | ||||
Notes:
1. Clip mounting (on case), where lead does not overlap heatsink with 0.110" offset
2. Clip mounting (on case), where leads do overlap heatsink
3. Screw mounting with 4-40 screw, where washer diameter is < 4.9 mm (0.19")
4. Pulse test: 300us pulse width, 1% duty cycle
