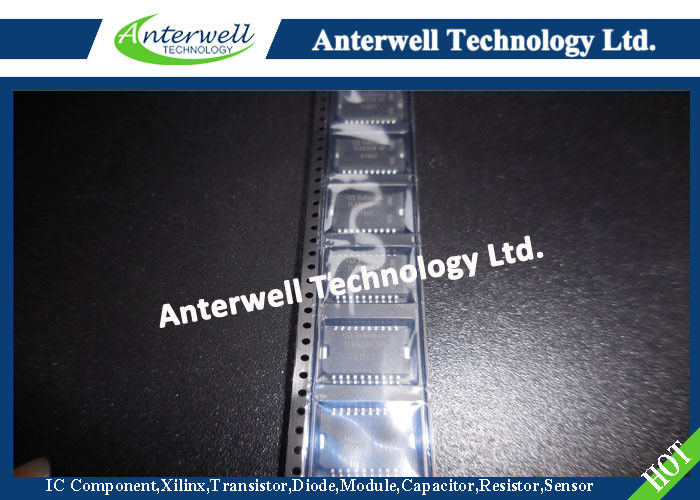

TLE6228GP Smart Quad Channel Low- Side Switch High Speed Switching Diode

TLE6228GP Smart Quad Channel Low-Side Switch High Speed Switching Diode

Features

Product Summary

• Shorted Circuit Protection

• Overtemperature Protection

• Overvoltage Protection

• Parallel Control of the Inputs (PWM Applications)

• Seperate Diagnostic Pin for Each Channel

• Power - SO 20 - Package with integrated cooling area

• Standby mode with low current consumption

• µC compatible Input

• Electrostatic Discharge (ESD) Protection

• Green Product (RoHS compliant)

• AEC qualified

Application

• All kinds of resistive and inductive loads (relays,electromagnetic valves)

• µC compatible power switch for 12 and 24 V applications

• Solenoid control switch in automotive and industrial control systems

• Robotic Controls

General description

Quad channel Low-Side-Switch (2x5A/2x3A) in Smart Power Technology (SPT) with four separate inputs and four open drain DMOS output stages. The TLE 6228 GP is fully protected by embedded protection functions and designed for automotive and industrial applications. Each channel has its own status signal for diagnostic feedback. Therefore the TLE 6228 GP is particularly suitable for ABS or Powertrain Systems.

Block Diagram
