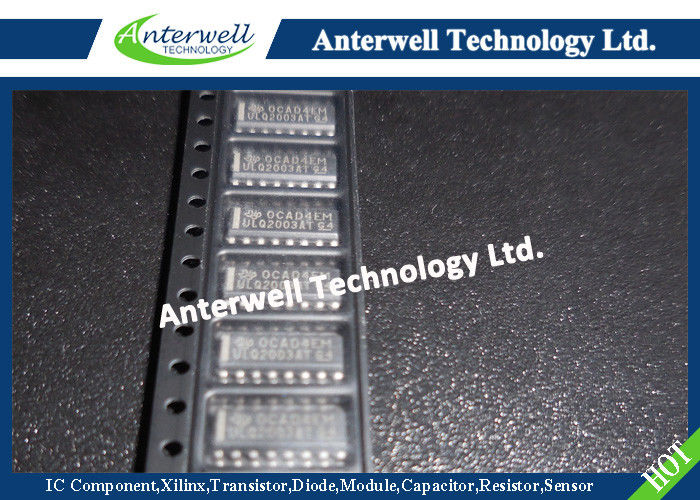

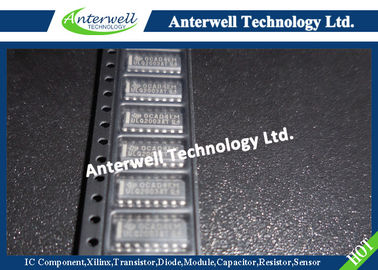

ULQ2003ATDRQ1 Electronic IC Chips HIGH-CRRENT DARLINGTON TRANSISTOR ARRAY

ULQ2003A-Q1, ULQ2004A-Q1

HIGH-VOLTAGE HIGH-CRRENT DARLINGTON TRANSISTOR ARRAY

•
Qualification in Accordance With AEC-Q100†

•
Qualified for Automotive Applications

•
Customer-Specific Configuration Control Can Be Supported Along With Major-Change Approval

•
ESD Protection Exceeds 200 V Using Machine Model (C = 200 pF, R = 0)

•
500-mA Rated Collector Current (Single Output)

•
High-Voltage Outputs . . . 50 V

•
Output Clamp Diodes

•
Inputs Compatible With Various Types of Logic

•
Relay-Driver Applications

† Contact Texas Instruments for details. Q100 qualification data available on request.

description

The ULQ2003A and ULQ2004A are high-voltage high-current Darlington transistor arrays. Each consists of seven npn Darlington pairs that feature high-voltage outputs with common-cathode clamp diodes for switching inductive loads. The collector-current rating of a single Darlington pair is 500 mA. The Darlington pairs can be paralleled for higher current capability. Applications include relay drivers, hammer drivers, lamp drivers, display drivers (LED and gas discharge), line drivers, and logic buffers.

The ULQ2003A has a 2.7-kΩ series base resistor for each Darlington pair, for operation directly with TTL or 5-V CMOS devices. The ULQ2004A has a 10.5-kΩ series base resistor to allow operation directly from CMOS devices that use supply voltages of 6 V to 15 V. The required input current of the ULQ2004A is below that of the ULQ2003A.

logic diagram

schematics (each Darlington pair)

absolute maximum ratings at 25°C free-air temperature (unless otherwise noted)†

Collector-emitter voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50 V

Clamp diode reverse voltage (see Note 1)  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50 V

Input voltage, V_I (see Note 1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  30 V

Peak collector current (see Figure 14)  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 500 mA

Output clamp current, I_OK . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  500 mA

Total emitter-terminal current  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . −2.5 A

Continuous total power dissipation  . . . . . . . . . . . . . . . . . . . . . . See Dissipation Rating Table

Package thermal impedance, θ_JA (see Note 2)  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73°C/W

Operating free-air temperature range, T_A,  . . . . . . . . . . . . . . . . . . . . . . . . . .  −40°C to 125°C

Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds  . . . . . . . . . . . . . . . . . 260°C

Storage temperature range, Tstg  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . −65°C to 150°C

† Stresses beyond those listed under “absolute maximum ratings” may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated under “recommended operating conditions” is not implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.

NOTES:

1. All voltage values are with respect to the emitter/substrate terminal E, unless otherwise noted.

2. The package thermal impedance is calculated in accordance with JESD 51-7.
