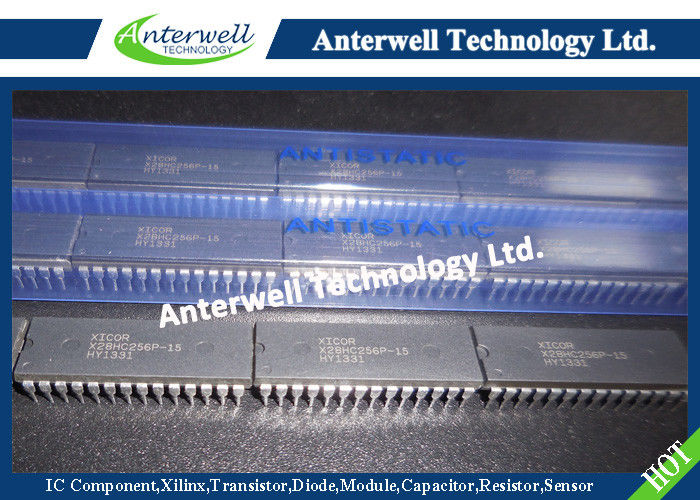

X28HC256P-15 Integrated Circuit Chip 5 Volt , Byte Alterable EEPROM

X28HC256

256K, 32K x 8 Bit

5 Volt, Byte Alterable EEPROM

FEATURES

• Access time: 70ns

• Simple byte and page write

  —Single 5V supply

  —No external high voltages or VPP control circuits

  —Self-timed

  —No erase before write

  —No complex programming algorithms

  —No overerase problem

• Low power CMOS

  —Active: 60mA

  —Standby: 500µA

• Software data protection

  —Protects data against system level inadvertent writes

• High speed page write capability

• Highly reliable Direct Write™ cell

  —Endurance: 1,000,000 cycles

  —Data retention: 100 years

• Early end of write detection

  —DATA polling

  —Toggle bit polling

DESCRIPTION

The X28HC256 is a second generation high performance CMOS 32K x 8 EEPROM. It is fabricated with Intersil’s proprietary, textured poly floating gate technology, providing a highly reliable 5 Volt only nonvolatile memory.

The X28HC256 supports a 128-byte page write operation, effectively providing a 24µs/byte write cycle, and enabling the entire memory to be typically rewritten in less than 0.8 seconds. The X28HC256 also features DATA Polling and Toggle Bit Polling, two methods of providing early end of write detection. The X28HC256 also supports the JEDEC standard Software Data Protection feature for protecting against inadvertent writes during power-up and power-down.

Endurance for the X28HC256 is specified as a minimum 1,000,000 write cycles per byte and an inherent data retention of 100 years.

BLOCK DIAGRAM

ABSOLUTE MAXIMUM RATINGS

Temperature under bias

    X28HC256 ....................................... -10°C to +85°C

    X28HC256I, X28HC256M .............. -65°C to +135°C

Storage temperature ......................... -65°C to +150°C

Voltage on any pin with

    respect to V_SS ........................................ -1V to +7V

D.C. output current .............................................10mA

Lead temperature (soldering, 10 seconds)........ 300°C

Stresses above those listed under “Absolute Maximum Ratings” may cause permanent damage to the device. This is a stress rating only; functional operation of the device (at these or any other conditions above those indicated in the operational sections of this specification) is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability.
