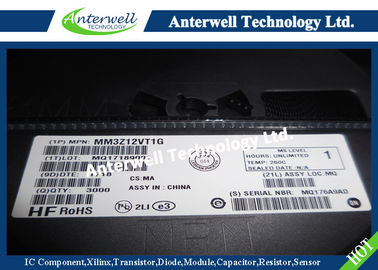

MM3Z12VT1G Rectifier Signal Schottky diode Zener Voltage Regulators SOD−323 Surface Mount

MM3Z2V4T1 SERIES

Zener Voltage Regulators

200 mW SOD−323 Surface Mount

This series of Zener diodes is packaged in a SOD−323 surface mount package that has a power dissipation of 200 mW. They are designed to provide voltage regulation protection and are especially attractive in situations where space is at a premium. They are well suited for applications such as cellular phones, hand held portables, and high density PC boards.

Specification Features:

• Standard Zener Breakdown Voltage Range − 2.4 V to 75 V

• Steady State Power Rating of 200 mW

• Small Body Outline Dimensions: 0.067″ x 0.049″ (1.7 mm x 1.25 mm)

• Low Body Height: 0.035″ (0.9 mm)

• Package Weight: 4.507 mg/unit

• ESD Rating of Class 3 (>16 kV) per Human Body Model

• Pb−Free Package is Available

Mechanical Characteristics:

CASE: Void-free, transfer-molded plastic

FINISH: All external surfaces are corrosion resistant

MAXIMUM CASE TEMPERATURE FOR SOLDERING PURPOSES: 260°C for 10 Seconds

LEADS: Plated with Pb−Sn or Sn only (Pb−Free)

POLARITY: Cathode indicated by polarity band

FLAMMABILITY RATING: UL 94 V−0

MOUNTING POSITION: Any

MAXIMUM RATINGS

1. FR−4 Minimum Pad
