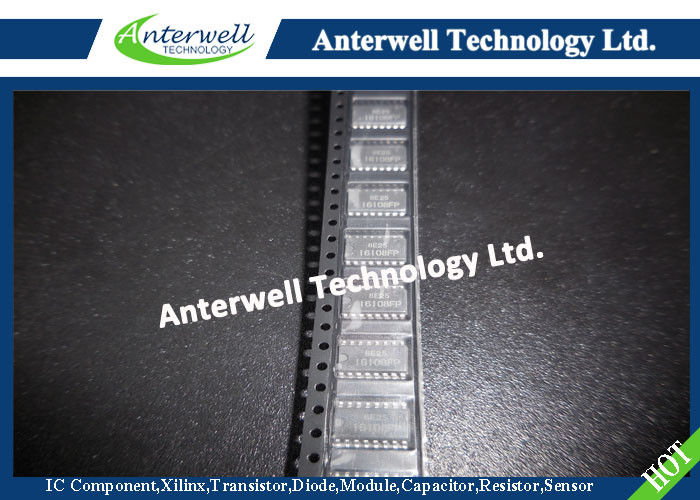

HA16108FP 600kHz Programmable IC Chips PWM Switching Regulator Controller full bridge rectifier

HA16108FP 600kHz PWM Switching Regulator Controller full bridge rectifier

Description The IC products in this series are primary control switching regulator control IC’s appropriate for obtaining stabilized DC voltages from commercial AC power.

These IC’s can directly drive power MOS FET’s, they have a timer function built in to the secondary overcurrent protection, and they can perform intermittent operation or delayed latched shutdown as protection operations in unusual conditions. They can be used to implement switching power supplies with a high level of safety due to the wide range of built-in functionality.

Functions

• 6.45 V reference voltage

• Triangle wave generator

• Error amplifier

• Under voltage lockout protector

• PWM comparator

• Pulse-by-pulse current limitting

• Timer-latch current limitting (HA16107)

• ON/OFF timer function (HA16108)

• Soft start and quick shutdown

• Output circuit for power MOS FET driving

Features

• Operating frequencies up to a high 600 kHz

• Built-in pre-driver circuit for driving power MOS FET

• Built-in timer latch over-current protection function (HA16107)

• The OCL enables intermittent operation by an ON/OFF timer for prevention of secondary overcurrent. (HA16108)

• The UVL function (under voltage lockout) is applied to both Vin and Vref.

• ON/OFF reset: an auto-reset function which is based on the time constant of an external capacitor and observation of drops in Vin.

• Since the over-voltage protection function OVP (the TL pin) only observes voltage drops in Vin, it is possible to use the OVP and ON/OFF pin for independent purposes.

• Built-in 34 V Zener diode between Vin and ground.
