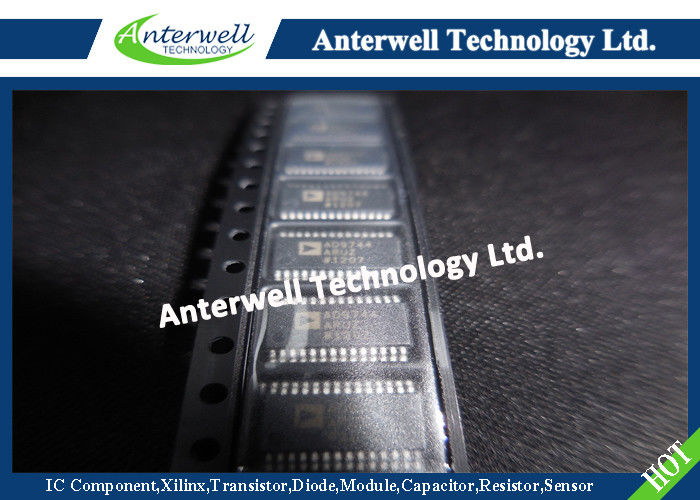

AD9744ARUZ Electronic IC Chips 14-Bit, 210 MSPS TxDAC® D/A Converter

14-Bit, 210 MSPS TxDAC® D/A Converter AD9744

FEATURES

High performance member of pin-compatible TxDAC product family

Excellent spurious-free dynamic range performance

SFDR to Nyquist

    83 dBc @ 5 MHz output

    80 dBc @ 10 MHz output

    73 dBc @ 20 MHz output

SNR @ 5 MHz output, 125 MSPS: 77 dB

Twos complement or straight binary data format

Differential current outputs: 2 mA to 20 mA

Power dissipation: 135 mW @ 3.3 V

Power-down mode: 15 mW @ 3.3 V

On-chip 1.2 V reference

CMOS-compatible digital interface

28-lead SOIC, 28-lead TSSOP, and 32-lead LFCSP packages

Edge-triggered latches

APPLICATIONS

Wideband communication transmit channel

    Direct IFs

    Base stations

    Wireless local loops

    Digital radio links

    Direct digital synthesis (DDS)

    Instrumentation

GENERAL DESCRIPTION

The AD97441 is a 14-bit resolution, wideband, third generation member of the TxDAC series of high performance, low power CMOS digital-to-analog converters (DACs). The TxDAC family, consisting of pin-compatible 8-, 10-, 12-, and 14-bit DACs, is specifically optimized for the transmit signal path of communication systems. All of the devices share the same interface options, small outline package, and pinout, providing an upward or downward component selection path based on performance, resolution, and cost. The AD9744 offers exceptional ac and dc performance while supporting update rates up to 210 MSPS.

The AD9744’s low power dissipation makes it well suited for portable and low power applications. Its power dissipation can be further reduced to a mere 60 mW with a slight degradation in performance by lowering the full-scale current output. Also, a power-down mode reduces the standby power dissipation to approximately 15 mW. A segmented current source architecture is combined with a proprietary switching technique to reduce spurious components and enhance dynamic performance.

The AD9744’s low power dissipation makes it well suited for portable and low power applications. Its power dissipation can be further reduced to a mere 60 mW with a slight degradation in performance by lowering the full-scale current output. Also, a power-down mode reduces the standby power dissipation to approximately 15 mW. A segmented current source architecture is combined with a proprietary switching technique to reduce spurious components and enhance dynamic performance.

PRODUCT HIGHLIGHTS

1. The AD9744 is the 14-bit member of the pin compatible TxDAC family, which offers excellent INL and DNL performance.

2. Data input supports twos complement or straight binary data coding.

3. High speed, single-ended CMOS clock input supports 210 MSPS conversion rate.

4. Low power: Complete CMOS DAC function operates on 135 mW from a 2.7 V to 3.6 V single supply. The DAC fullscale current can be reduced for lower power operation, and a sleep mode is provided for low power idle periods.

5. On-chip voltage reference: The AD9744 includes a 1.2 V temperature compensated band gap voltage reference. 6. Industry-standard 28-lead SOIC, 28-lead TSSOP, and 32-lead LFCSP packages.

FUNCTIONAL BLOCK DIAGRAM
