BCP51 Power Mosfet Transistor 45 V, 1 A PNP medium power transistors

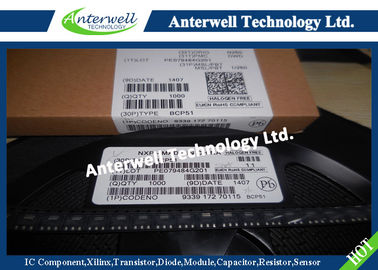

: Large Image : BCP51 Power Mosfet Transistor 45 V, 1 A PNP medium power transistors

Product Details:

Place of Origin:	original factory
Brand Name:	Anterwell
Certification:	new & original
Model Number:	BCP51

Payment & Shipping Terms:

Minimum Order Quantity:	20pcs
Price:	Negotiate
Packaging Details:	Please contact me for details
Delivery Time:	1 day
Payment Terms:	T/T, Western Union, Paypal
Supply Ability:	8000pcs

Contact Now

Detailed Product Description

Collector-base Voltage:	−45 V	Collector-emitter Voltage:	−45 V
Emitter-base Voltage:	−5 V	Collector Current:	−1 A
Peak Collector Current:	−1.5 A	Peak Base Current:	−0.2 A
Highlight:	multi emitter transistor , silicon power transistors

BC636; BCP51; BCX51

45 V, 1 A PNP medium power transistors

Features

■ High current

■ Two current gain selections

■ High power dissipation capability

Applications

■ Linear voltage regulators

■ High-side switches

■ MOSFET drivers

■ Amplifiers

Limiting values

In accordance with the Absolute Maximum Rating System (IEC 60134).

Symbol	Parameter	Conditions	Min	Max	Unit
V_CBO	collector-base voltage	open emitter	-	-45	V
V_CEO	collector-emitter voltage	open base	-	-45	V
V_EBO	emitter-base voltage	open collector	-	-5	V
I_C	collector current		-	-1	A
I_CM	peak collector current	single pulse; t_p ≤ 1 ms	-	-1.5	A
I_BM	peak base current	single pulse; t_p ≤ 1 ms	-	-0.2	A
P_tot	total power dissipation	T_amb ≤ 25 °C
	BC636	[1]	-	0.83	W
	BCP51	[1] [2]	- -	0.65 1	W
	BCX51	[1] [2] [3]	- - -	0.5 0.9 1.3	W
T_j	junction temperature		-	150	°C
T_amb	ambient temperature		−65	+150	°C
T_stg	storage temperature		−65	+150	°C

[1] Device mounted on an FR4 Printed-Circuit Board (PCB), single-sided copper, tin-plated and standard footprint.

[2] Device mounted on an FR4 PCB, single-sided copper, tin-plated, mounting pad for collector 1 cm².

[3] Device mounted on an FR4 PCB, single-sided copper, tin-plated, mounting pad for collector 6 cm².
