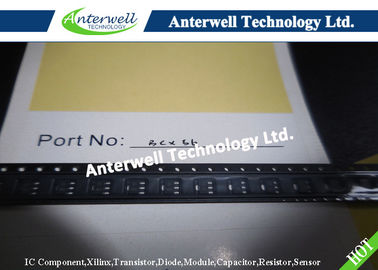

BCX56 Power Mosfet IC Transistor NPN SILICON PLANAR MEDIUM POWER TRANSISTORS

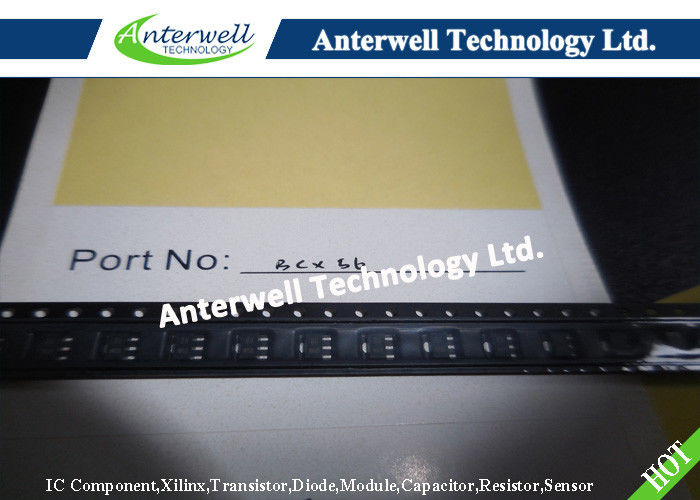

: Large Image : BCX56 Power Mosfet IC Transistor NPN SILICON PLANAR MEDIUM POWER TRANSISTORS

Product Details:

Place of Origin:	original factory
Brand Name:	Anterwell
Certification:	new & original
Model Number:	BCX56

Payment & Shipping Terms:

Minimum Order Quantity:	10PCS
Price:	Negotiate
Packaging Details:	Please contact me for details
Payment Terms:	T/T, Western Union, MoneyGram Paypal
Supply Ability:	3000pcs/week

Contact Now

Detailed Product Description

Collector-Base Voltage:	100V	Collector-Emitter Voltage:	80V
Emitter-Base Voltage:	5V	Peak Pulse Current:	2A
Continuous Collector Current:	1A	Operating And Storage Temperature Range:	-65 To +150
Highlight:	multi emitter transistor , silicon power transistors

SOT89 NPN SILICON PLANAR MEDIUM POWER TRANSISTORS BCX56

DESCRIPTION

Collector-Base Voltage:100V

Collector-Emitter Voltage:80V

Emitter-Base Voltage:5V

Peak Pulse Current:2A

Continuous Collector Current:1A

Power Dissipation at Tamb=25°C:1W

Operating and Storage Temperature Range:65 to +150°C

APPLICATIONS

ABSOLUTE MAXIMUM RATINGS.
PARAMETER	SYMBOL	BCX54	BCX55	BCX56	UNIT
Collector-Base Voltage	VCBO	45	60	100	V
Collector-Emitter Voltage	VCEO	45	60	80	V
Emitter-Base Voltage	VEBO	5			V
Peak Pulse Current	ICM	2			A
Continuous Collector Current	IC	1			A
Power Dissipation at Tamb=25°C	Ptot	1			W
Operating and Storage Temperature Range	Tj:Tstg	-65 to +150			°C
