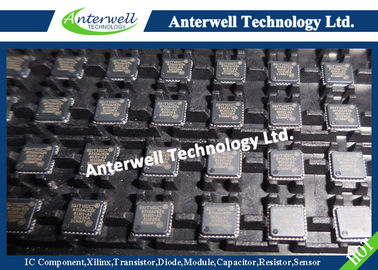

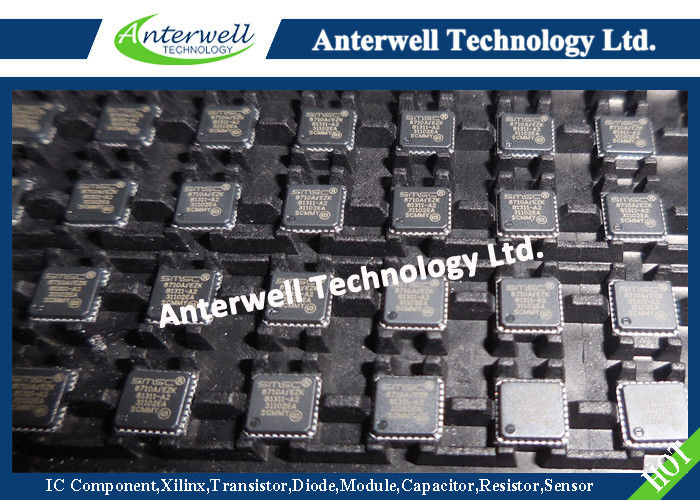

LAN8710A-EZC-TR ic chips Small Footprint MII/RMII 10/100 Ethernet Transceiver



LAN8710A/LAN8710Ai

Small Footprint MII/RMII 10/100 Ethernet Transceiver with HP Auto-MDIX and flexPWR® Technology



PRODUCT FEATURES



Highlights „

• Single-Chip Ethernet Physical Layer Transceiver (PHY) „

• Comprehensive flexPWR® Technology

  — Flexible Power Management Architecture

  — LVCMOS Variable I/O voltage range: +1.6V to +3.6V

  — Integrated 1.2V regulator with disable feature „

• HP Auto-MDIX support „

• Small footprint 32-pin QFN lead-free RoHS compliant package (5 x 5 x 0.9mm height)



Target Applications „

• Set-Top Boxes „

• Networked Printers and Servers „

• Test Instrumentation „

• LAN on Motherboard „

• Embedded Telecom Applications „

• Video Record/Playback Systems „

• Cable Modems/Routers „

• DSL Modems/Routers „

• Digital Video Recorders

„• IP and Video Phones „

• Wireless Access Points „

• Digital Televisions „

• Digital Media Adaptors/Servers „

• Gaming Consoles „

• POE Applications (Refer to SMSC Application Note 17.18)



Key Benefits „

High-Performance 10/100 Ethernet Transceiver

  — Compliant with IEEE802.3/802.3u (Fast Ethernet)

  — Compliant with ISO 802-3/IEEE 802.3 (10BASE-T)

  — Loop-back modes

  — Auto-negotiation

  — Automatic polarity detection and correction

  — Link status change wake-up detection

  — Vendor specific register functions

  — Supports both MII and the reduced pin count RMII interfaces „



Power and I/Os

  — Various low power modes

  — Integrated power-on reset circuit

  — Two status LED outputs

  — Latch-Up Performance Exceeds 150mA per EIA/JESD 78, Class II

  — May be used with a single 3.3V supply „



Additional Features

  — Ability to use a low cost 25Mhz crystal for reduced BOM „

Packaging

  — 32-pin QFN (5x5 mm) Lead-Free RoHS Compliant package with MII and RMII „

Environmental

  — Extended commercial temperature range (0°C to +85°C)

  — Industrial temperature range version available (-40°C to +85°C)



Absolute Maximum Ratings*



Supply Voltage (VDDIO, VDD1A, VDD2A) (Note 5.1) . . . . . . . . . . . . . . . . . . . . . . . . . . . -0.5V to +3.6V

Digital Core Supply Voltage (VDDCR) (Note 5.1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . -0.5V to +1.5V

Ethernet Magnetics Supply Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . -0.5V to +3.6V

Positive voltage on signal pins, with respect to ground (Note 5.2) . . . . . . . . . . . . . . . . . . . . . . . . . . +6V

Negative voltage on signal pins, with respect to ground (Note 5.3) . . . . . . . . . . . . . . . . . . . . . . . . -0.5V

Positive voltage on XTAL1/CLKIN, with respect to ground . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . +4.6V

Positive voltage on XTAL2, with respect to ground . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . +2.5V

Ambient Operating Temperature in Still Air (T_A). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Note 5.40



Storage Temperature. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .-55℃ to +150℃

Junction to Ambient (θ_JA) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ..48.3℃/W

Junction to Case (θ_JC) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10.6℃/W

Lead Temperature Range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Refer to JEDEC Spec. J-STD-020

HBM ESD Performance per JEDEC JESD22-A114. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Class 3A

IEC61000-4-2 Contact Discharge ESD Performance (Note 5.5) . . . . . . . . . . . . . . . . . . . . . . . . . .+/-8kV

IEC61000-4-2 Air-Gap Discharge ESD Performance (Note 5.5) . . . . . . . . . . . . . . . . . . . . . . . . .+/-15kV

Latch-up Performance per EIA/JESD 78 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ..+/-150mA

---

Note 5.1 When powering this device from laboratory or system power supplies, it is important that the absolute maximum ratings not be exceeded or device failure can result. Some power supplies exhibit voltage spikes on their outputs when AC power is switched on or off. In addition, voltage transients on the AC power line may appear on the DC output. If this possibility exists, it is suggested that a clamp circuit be used.

Note 5.2 This rating does not apply to the following pins: XTAL1/CLKIN, XTAL2, RBIAS.

Note 5.3 This rating does not apply to the following pins: RBIAS.

Note 5.4 0℃ to +85℃ for extended commercial version, -40℃ to +85℃ for industrial version.

Note 5.5 Performed by independent 3rd party test facility
