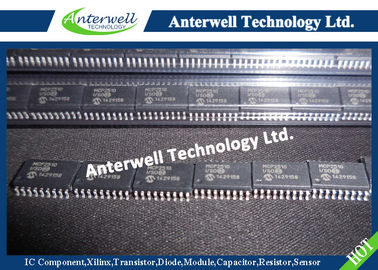

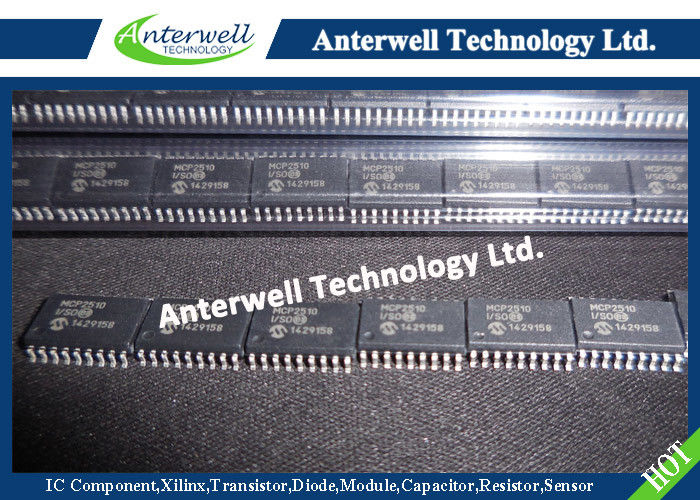

MCP2510-ISO Electronic IC Chips Stand-Alone CAN Controller with SPI Interface

MCP2510

Stand-Alone CAN Controller with SPI™ Interface

FEATURES

• Implements Full CAN V2.0A and V2.0B at 1 Mb/s

  - 0 - 8 byte message length

  - Standard and extended data frames

  - Programmable bit rate up to 1 Mb/s

  - Support for remote frames

  - Two receive buffers with prioritized message storage

  - Six full acceptance filters

  - Two full acceptance filter masks

  - Three transmit buffers with prioritization and abort features

  - Loop-back mode for self test operation

• Hardware Features

  - High Speed SPI Interface (5 MHz at 4.5V I temp)

  - Supports SPI modes 0,0 and 1,1

  - Clock out pin with programmable prescaler

  - Interrupt output pin with selectable enables

  - ‘Buffer full’ output pins configureable as interrupt pins for each receive buffer or

    as general purpose digital outputs

  - ‘Request to Send’ input pins configureable as control pins to request immediate message

    transmission for each transmit buffer or as general purpose digital inputs

  - Low Power Sleep mode

• Low power CMOS technology

  - Operates from 3.0V to 5.5V

  - 5 mA active current typical

  - 10 µA standby current typical at 5.5V

• 18-pin PDIP/SOIC and 20-pin TSSOP packages

• Temperature ranges supported:

  - Industrial (I): -40°C to +85°C

  - Extended (E): -40°C to +125°C

DESCRIPTION

The Microchip Technology Inc. MCP2510 is a Full Controller Area Network (CAN) protocol controller implementing CAN specification V2.0 A/B. It supports CAN 1.2, CAN 2.0A, CAN 2.0B Passive, and CAN 2.0B Active versions of the protocol, and is capable of transmitting and receiving standard and extended messages. It is also capable of both acceptance filtering and message management. It includes three transmit buffers and two receive buffers that reduce the amount of microcontroller (MCU) management required. The MCU communication is implemented via an industry standard Serial Peripheral Interface (SPI) with data rates up to 5Mb/s.

PACKAGE TYPES

Maximum Ratings

V_DD...................................................................................7.0V

All inputs and outputs w.r.t. V_SS............... -0.6V to V_DD +1.0V

Storage temperature .....................................-65°C to +150°C

Ambient temp. with power applied ................-65°C to +125°C

Soldering temperature of leads (10 seconds) .............+300°C

ESD protection on all pins..................................................≥ 4 kV

*Notice: Stresses above those listed under “Maximum Ratings” may cause permanent damage to the device. This is a stress rating only and functional operation of the device at those or any other conditions above those indicated in the operational listings of this specification is not implied. Exposure to maximum rating conditions for extended periods may affect device reliability.
