NBB-310 IC Chips CASCADABLE BROADBAND GaAs MMIC AMPLIFIER DC TO 12GHz

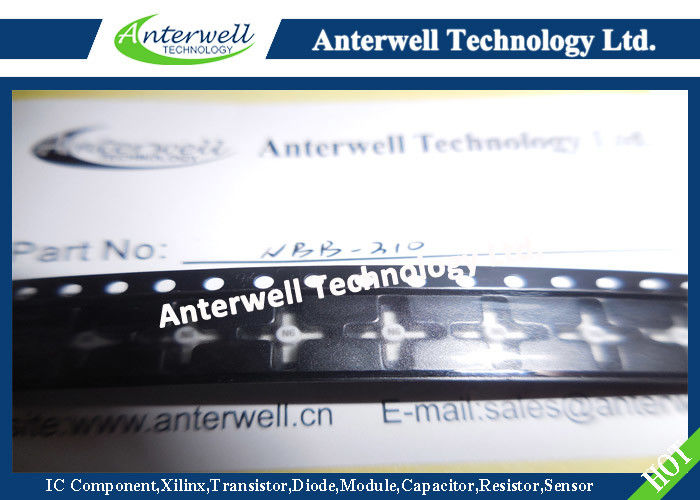

NBB-310

CASCADABLE BROADBAND GaAs MMIC AMPLIFIER DC TO 12GHz

Features „

• Reliable, Low-Cost HBT Design „

• 13dB Gain „

• High P1dB of +15.2dBm at 6GHz „

• Single Power Supply Operation „

• 50Ω I/O Matched for High Freq. Use

Applications „

• Narrow and Broadband Commercial and Military Radio Designs

• Linear and Saturated Amplifiers „

• Gain Stage or Driver Amplifiers for MWRadio/Optical Designs (PTP/PMP/ LMDS/UNII/VSAT/WLAN/Cellular/DWDM)

Product Description

The NBB-310 cascadable broadband InGaP/GaAs MMIC amplifier is a low-cost, high-performance solution for general purpose RF and microwave amplification needs. This 50Ω gain block is based on a reliable HBT proprietary MMIC design, providing unsurpassed performance for small-signal applications. Designed with an external bias resistor, the NBB-310 provides flexibility and stability. The NBB-310 is packaged in a low-cost, surface-mount ceramic package, providing ease of assembly for high-volume tape-and-reel requirements. It is available in either packaged or chip (NBB-310-D) form, where its gold metallization is ideal for hybrid circuit designs.

Absolute Maximum Ratings

Exceeding any one or a combination of these limits may cause permanent damage.
