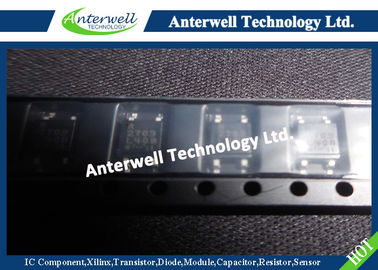

PS2703-1-F3-A Electronic IC Chips HIGH ISOLATION VOLTAGE MULTI PHOTOCOUPLER

: Large Image : PS2703-1-F3-A Electronic IC Chips HIGH ISOLATION VOLTAGE MULTI PHOTOCOUPLER

Product Details:

Place of Origin:	original factory
Brand Name:	Anterwell
Certification:	new & original
Model Number:	PS2703-1-F3-A

Payment & Shipping Terms:

Minimum Order Quantity:	100pcs
Price:	Negotiate
Packaging Details:	Please contact me for details
Delivery Time:	1 day
Payment Terms:	T/T, Western Union, Paypal
Supply Ability:	12000pcs

Contact Now

Detailed Product Description

Forward Current (DC):	50 MA	Reverse Voltage:	6 V
Collector To Emitter Voltage:	120 V	Emitter To Collector Voltage:	6 V
Collector Current:	30 MA	Operating Ambient Temperature:	- 55 To +100 °C
Highlight:	electronic integrated circuit , linear integrated circuits

PHOTOCOUPLER PS2703-1

HIGH ISOLATION VOLTAGE HIGH COLLECTOR TO EMITTER VOLTAGE TYPE SOP MULTI PHOTOCOUPLER

DESCRIPTION

The PS2703-1 is an optically coupled isolator containing a GaAs light emitting diode and an NPN silicon phototransistor.

This is mounted in a plastic SOP (Small Outline Package) for high density applications.

This package has shield effect to cut off ambient light.

FEATURES

• High isolation voltage (BV = 3 750 Vr.m.s.)

• High collector to emitter voltage (VCEO = 120 V)

• SOP (Small Outline Package) type

• Each isolated channel per package

• High-speed switching (tr, tf = 10 µs TYP.)

• Taping product number: PS2703-1-F3, F4

• Safety standards

• UL approved: File No. E72422

• BSI approved: File No. 8219/8220

• CSA approved: File No. CA 101391

• DIN EN60747-5-2 (VDE0884 Part2) approved (Option)

APPLICATIONS

• Hybrid IC

• Telephone/FAX

• FA/OA equipment

• Programmable logic controllers

• Power supply

PACKAGE DIMENSIONS (in millimeters)

PS2703-1-F3-A Electronic IC Chips HIGH ISOLATION VOLTAGE MULTI PHOTOCOUPLER

ABSOLUTE MAXIMUM RATINGS (T_A = 25°C, unless otherwise specified)

Parameter		Symbol	Ratings	Unit
Diode	Forward Current (DC)	I_F	50	mA
	Reverse Voltage	V_R	6	V
	Reverse Voltage	∆P_D/°C	0.8	mW/°C
	Power Dissipation	P_D	80	mW
	Peak Forward Current^*1	I_FP	1	A
Transistor	Collector to Emitter Voltage	V_CEO	120	V
	Emitter to Collector Voltage	V_ECO	6	V
	Collector Current	I_C	30	mA
	Power Dissipation Derating	∆P_C/°C	1.5	mW/°C
	Power Dissipation	P_C	150	mW
Isolation Voltage^*2		BV	3750	Vr.m.s.
Operating Ambient Temperature		T_A	–55 to +100	°C
Storage Temperature		Tstg	–55 to +150	°C

*1 PW = 100 µs, Duty Cycle = 1%

*2 AC voltage for 1 minute at T_A = 25°C, RH = 60% between input and output Pins 1-2 shorted together, 3-4 shorted together.
