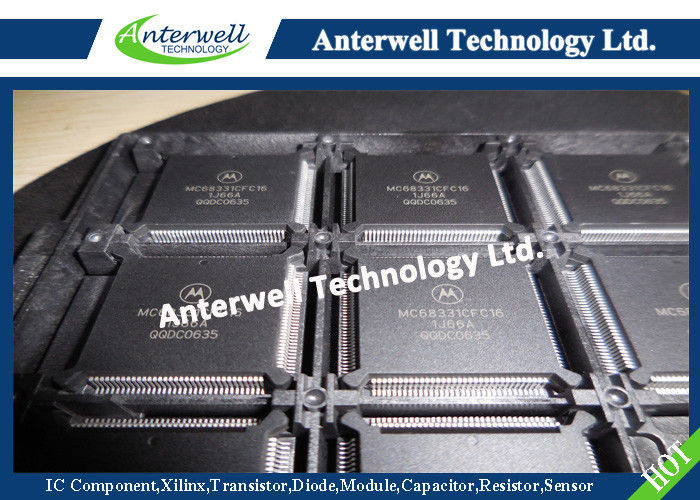

MC68331CFC16 Electronic IC Chips 32-Bit Modular Microcontroller optical integrated circuits

MC68331CFC16 Ic Chip 32-Bit Modular Microcontroller

Features​
• Modular Architecture

• Central Processing Unit (CPU32)

— Upward Object Code Compatible

— New Instructions for Controller Applications

— 32-Bit Architecture

— Virtual Memory Implementation

— Loop Mode of Instruction Execution

— Table Lookup and Interpolate Instruction

— Improved Exception Handling for Controller Applications

— Trace on Change of Flow — Hardware Breakpoint Signal, Background Mode

— Fully Static Operation

• System Integration Module (SIM)

— External Bus Support

— Programmable Chip-Select Outputs

— System Protection Logic

— Watchdog Timer, Clock Monitor, and Bus Monitor

— System Protection Logic

— System Clock Based on 32.768-kHz Crystal for Low Power Operation

— Test/Debug Submodule for Factory/User Test and Development

• Queued Serial Module (QSM)

— Enhanced Serial Communication Interface (SCI), Universal Asynchronous Receiver Transmitter (UART): Modulus Baud Rate, Parity

— Queued Serial Peripheral Interface (QSPI): 80-Byte RAM, Up to 16 Automatic Transfers

— Dual Function I/O Ports

— Continuous Cycling, 8 to 16 Bits per Transfer

• General-Purpose Timer (GPT)

— Two 16-Bit Free-Running Counters With One Nine-Stage Prescaler

— Three Input Capture Channels

— Four Output Compare Channels

— One Input Capture/Output Compare Channel

— One Pulse Accumulator/Event Counter Input

— Two Pulse-Width Modulation Outputs

— Optional External Clock Input
                                                        MCU Signal Function



Please contact us for more detail of product figure
