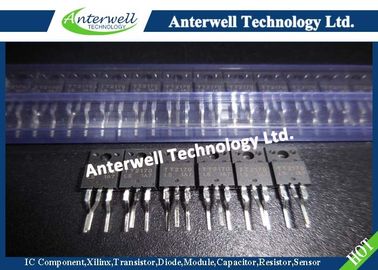

TT2170 Color TV Horizontal Deflection Output Applications
Features
High speed.
High breakdown voltage(VCBO=1500V).
High reliability(Adoption of HVP process).
Adoption of MBIT process.
On-chip damper diode.
Specifications
Absolute Maximum Ratings at Ta=25°C
| Parameter | Symbol | Conditions | Ratings | Unit |
|---|---|---|---|---|
| Collector-to-Base Voltage | VCBO | 1500 | V | |
| Collector-to-Emitter Voltage | VCEO | 800 | V | |
| Collector-to-Emitter Voltage | VEBO | 5 | V | |
| Collector Current | IC | 5 | A | |
| Collector Current (Pulse) | ICP | 12 | A | |
| Collector Dissipation | PC | 2.0 | W | |
| Tc=25°C | 25 | W | ||
| Junction Temperature | Tj | 150 | °C | |
| Storage Temperature | Tstg | --55 to +150 | °C |
Electrical Characteristics at Ta=25°C
| Parameter | Symbol | Conditions | Ratings | Unit | ||
| min | typ | max | ||||
| Collector Cutoff Current | ICBO | VCB=800V, IE=0 | 10 | µA | ||
| Collector Cutoff Current | ICES | VCE=1500V, RBE=0 | 1.0 | mA | ||
| Collector Sustain Voltage | VCEO(sus) | IC=100mA, IB=0 | 800 | V | ||
| Emitter Cutoff Current | IEBO | VBE=4V, IC=0 | 40 | 130 | mA | |
| Collector-to-Emitter Saturation Voltage | VCE(sat) | IC=2.7A, IB=0.54A | 3 | V | ||
| Base-to-Emitter Saturation Voltage | VBE(sat) | IC=2.7A, IB=0.54A | 1.5 | V | ||
| DC Current Gain | hFE1 | VCE=5V, IC=0.5A | 10 | |||
| hFE2 | VCE=5V, IC=3A | 5 | 8 | |||
| Diode Forward Voltage | VF | IEC=4A | 2 | V | ||
| Fall Time | tf | IC=1.8A, IB1=0.36A, IB2=--0.72A | 0.3 | µs | ||
