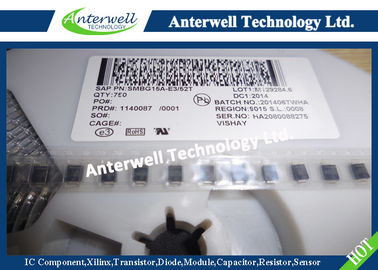

SMBG15A-E3/52T Rectifier Diode TRANSZORB TRANSIENT VOLTAGE SUPPRESSOR

SMBG AND SMBJ5.0 THRU 170CA

SURFACE MOUNT TRANSZORB™ TRANSIENT VOLTAGE SUPPRESSOR

Stand-off Voltage - 5.0 to 170 Volts

Peak Pulse Power - 600 Watts

FEATURES

♦ Plastic package has Underwriters Laboratory Flammability Classification 94V-0

♦ For surface mounted applications in order to optimize board space

♦ Low profile package

♦ Built-in strain relief

♦ Glass passivated junction

♦ Low incremental surge resistance

♦ 600W peak pulse power capability with a 10/1000µs waveform, repetition rate (duty cycle): 0.01%

♦ Excellent clamping capability

♦ Fast response time: typically less than 1.0ps from 0 volts to V_(BR) for unidirectional and 5.0ns for bidirectional types

♦ For devices with V_(BR)≥10V, I_D are typically less than 1.0µA

♦ High temperature soldering guaranteed: 250°C/10 seconds at terminals

MECHANICAL DATA

Case: JEDEC DO214AA / DO215AA molded plastic body over passivated junction

Terminals: Solder plated, solderable per MIL-STD-750, Method 2026

Polarity: For unidirectional types the color band denotes the cathode, which is postitive with respect to the anode under normal TVS operation

Mounting Position: Any

Weight: 0.003 ounces, 0.093 gram

DEVICES FOR BIDIRECTIONAL APPLICATIONS

For bidirectional use suffix C or CA for types SMB-5.0 thru SMB-170 (eg. SMBG5.0C, SMBJ170CA). Electrical characteristics apply in both directions

MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS

Ratings at 25°C ambient temperature unless otherwise specified.

NOTES:

(1) Non-repetitive current pulse, per Fig.3 and derated above TA=25°C per Fig. 2

(2) Mounted on 0.2 x 0.2” (5.0 x 5.0mm) copper pads to each terminal

(3) Measured on 8.3ms single half sine-wave. For uni-directional devices only.
