MBR0520LT1 Rectifier Diode Schottky Power Rectifier Diodes PFM Step-Up Micropower Switching Regulator

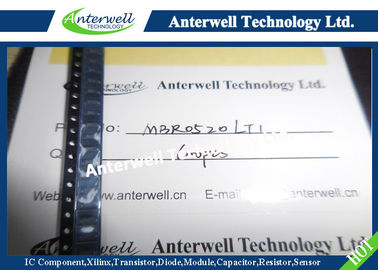

: Large Image : MBR0520LT1 Rectifier Diode Schottky Power Rectifier Diodes PFM Step-Up Micropower Switching Regulator

Product Details:

Place of Origin:	original factory
Brand Name:	ON Semiconductor
Certification:	new & original
Model Number:	MBR0520LT1

Payment & Shipping Terms:

Minimum Order Quantity:	20pcs
Price:	Negotiate
Packaging Details:	Please contact me for details
Delivery Time:	1 day
Payment Terms:	T/T, Western Union, Paypal
Supply Ability:	30000pcs

Contact Now

Detailed Product Description

Peak Repetitive Reverse Voltage:

20V

Average Rectified Forward Current:

0.5A

Storage Temperature Range:

- 65 To +150°C

Operating Junction Temperature:

- 65 To +125°C

Highlight:

diode rectifier circuit

bridge rectifier circuit

MBR0520LT1 Surface Mount Schottky Power Rectifier Diodes

Features

• Guardring for Stress Protection

• Very Low Forward Voltage (0.38 V Max @ 0.5 A, 25°C)

• 125°C Operating Junction Temperature

• Epoxy Meets UL 94 V−0 @ 0.125 in

• Package Designed for Optimal Automated Board Assembly

• Pb−Free Packages are Available

Mechanical Characteristics
• Reel Options: MBR0520LT1 = 3,000 per 7″ reel/8 mm tape

MBR0520LT3 = 10,000 per 13″ reel/8 mm tape

• Polarity Designator: Cathode Band

• Weight: 11.7 mg (approximately)

• Case: Epoxy, Molded

• Finish: All External Surfaces Corrosion Resistant and Terminal Leads are Readily Solderable

• Lead and Mounting Surface Temperature for Soldering Purposes: 260°C Max. for 10 Seconds
MAXIMUM RATINGS

Rating	Symbol	Value	Unit
Peak Repetitive Reverse Voltage Working Peak Reverse Voltage DC Blocking Voltage	VRRM VRWM VR	20	V
Average Rectified Forward Current (Rated VR, TL = 90°C)	IF(AV)	0.5	A
Non−Repetitive Peak Surge Current(Surge Applied at Rated Load Conditions Halfwave, Single Phase, 60 Hz)	IFSM	5.5	A
Storage Temperature Range	Tstg	−65 to +150	°C
Operating Junction Temperature	TJ	−65 to +125	°C
Voltage Rate of Change (Rated VR)	dv/dt	1000	V/s
ESD Ratings:Machine Model = C Human Body Model = 3B		> 400 > 8000	V

THERMAL CHARACTERISTICS

Rating	Symbol	Value	Unit
Thermal Resistance; Junction−to−Ambient	RJA	206	°C/W
Thermal Resistance; Junction−to−Lead	RJL	150	°C/W
