Product Details:
Payment & Shipping Terms:
|
| Temperature Range: | - 65 C To + 150 C | Breakdown Voltage: | 418 V |
|---|---|---|---|
| Clamp Voltage: | 602 V | Package: | Reel |
| Highlight: | bridge rectifier circuit,signal schottky diode |
||

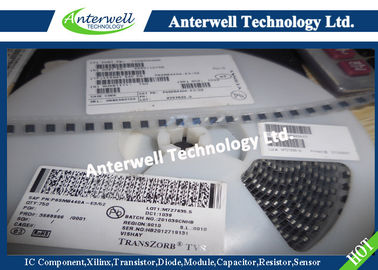

P6SMB440A-E3-52 Transient Voltage Suppression Diodes
FEATURES
• Low profile package
• Ideal for automated placement
• Glass passivated chip junction
• Available in uni-directional and bi-directional
• 600 W peak pulse power capability with a 10/1000 µs waveform, repetitive rate (duty cycle): 0.01 %
•Excellent clamping capability
•Very fast response time
• Low incremental surge resistance
• Meets MSL level 1, per J-STD-020, LF maximum peak of 260 °C
• Solder dip 260 °C, 40 s
• Component in accordance to RoHS 2002/95/EC and WEEE 2002/96/EC
TYPICAL APPLICATIONS
Use in sensitive electronics protection against voltage transients induced by inductive load switching and lighting on ICs, MOSFET, signal lines of sensor units for consumer, computer, industrial and telecommunication.
PRIMARY CHARACTERISTICS
| VBR uni-directional | 6.8 V to 540 V |
| VBR bi-directional | 6.8 V to 220 V |
| PPPM | 600 W |
| PD | 5.0 W |
| IFSM (uni-directional only) | 100 A |
| TJ max. | 150 °C |
MAXIMUM RATINGS
| PARAMETER | SYMBOL | VALUE | UNIT |
| Peak power dissipation with a 10/1000 µs waveform | PPPM | 600 | W |
| Peak pulse current with a 10/1000 µs waveform | IPPM | - | A |
| Power dissipation on infinite heatsink TA = 50 °C , | PD | 5.0 | W |
| Peak forward surge current 8.3 ms single half sine-wave uni-directional only | IFSM | 100 | A |
| Operating junction and storage temperature range | TJ, TSTG | - 65 to + 150 | °C |
