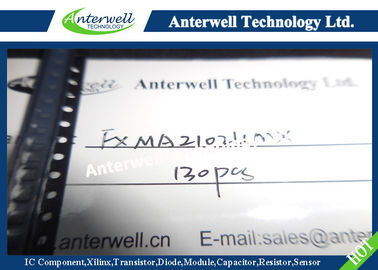

FXMA2102UMX Dual Supply, 2-Bit Voltage Translator / Buffer / Repeater / Isolator for I2C Applications electronic ic chip

FXMA2102UMX Dual Supply, 2-Bit Voltage Translator / Buffer / Repeater / Isolator for I2C Applications

Features
 Bi-Directional Interface between Any Two Levels: 1.65 V to 5.5 V
 Direction Control not Needed
 System GPIO Resources Not Required when OE Tied to VCCA
 I 2 C 400 pF Buffer / Repeater
 I 2 C Bus Isolation
 A/B Port VOL = 175 mV (Typical), VIL = 150 mV, IOL = 6 mA
 Open-Drain Inputs / Outputs
 Accommodates Standard-Mode and Fast-Mode I 2 C-Bus Devices
 Supports I2 C Clock Stretching & Multi-Master
 Fully Configurable: Inputs and Outputs Track VCC
 Control Input (/OE) Referenced to VCCA.
 Non-Preferential Power-Up; Either VCC May Be Powered-Up First
 Outputs Switch to 3-State if Either VCC is at GND
 Tolerant Output Enable: 5 V
 Packaged in 8-Terminal Leadless MicroPak™ (1.6 mm x 1.6 mm) and Ultrathin MLP (1.2 mm x 1.4 mm)
 ESD Protection Exceeds: - 8 kV HBM ESD (per JESD22-A114) - 2 kV CDM (per JESD22-C101)
Description
The FXMA2102 is a high-performance configurable dual-voltage-supply translator for bi-directional voltage translation over a wide range of input and output voltages levels. Intended for use as a voltage translator between I2 C- Bus® complaint masters and slaves. The device is designed so that the A port tracks the VCCA level and the B port tracks the VCCB level. This allows for bi-directional A/B port voltage translation between any two levels from 1.65 V to 5.5 V. VCCA can equal VCCB from 1.65V to 5.5V. The OE pin is referenced to VCCA. Either VCC can be powered-up first. Internal power-down control circuits place the device in 3-state if either VCC is removed. The two ports of the device have automatic direction sense capability. Either port may sense an input signal and transfer it as an output signal to the other port.
