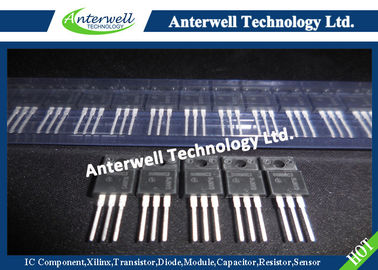

Features
• New revolutionary high voltage technology
VDS | 800 | V |
R DS(on)max @ Tj = 25°C | 0.65 | Ω |
Q g,typ | 45 | nC |
• Extreme dv/dt rated
• High peak current capability
• Qualified according to JEDEC1) for target applications
• Pb-free lead plating; RoHS compliant
• Ultra low gate charge
• Ultra low effective capacitances
• Fully isolated package (2500 VAC; 1 minute)
CoolMOSTM 800V designed for:
• Industrial application with high DC bulk voltage
• Switching Application ( i.e. active clamp forward )
Maximum ratings
Parameter | Symbol | Conditions | Value | Unit |
Continuous drain current2) | I D | T C=25 °C T C=100 °C |
8 5.1 |
A |
Pulsed drain current3) | I D,pulse | T C=25 °C | 24 | A |
Avalanche energy, single pulse | E AS | I D=1.6 A, V DD=50 V | 340 | mJ |
Avalanche energy, repetitive t AR 3),4) | E AR | I D=8 A, V DD=50 V | 0.2 | mJ |
Avalanche current, repetitive t AR 3),4) | I AR | 8 | A | |
MOSFET dv /dt ruggedness | dv /dt | V DS=0…640 V | 50 | V/ns |
Gate source voltage | V GS | static AC (f >1 Hz) |
±20 ±30 |
V |
Power dissipation | P tot | T C=25 °C | 40 | W |
Operating and storage temperature | T j , T stg | -55 ... 150 | °C | |
Mounting torque | M2.5 screws | 50 | Ncm |
