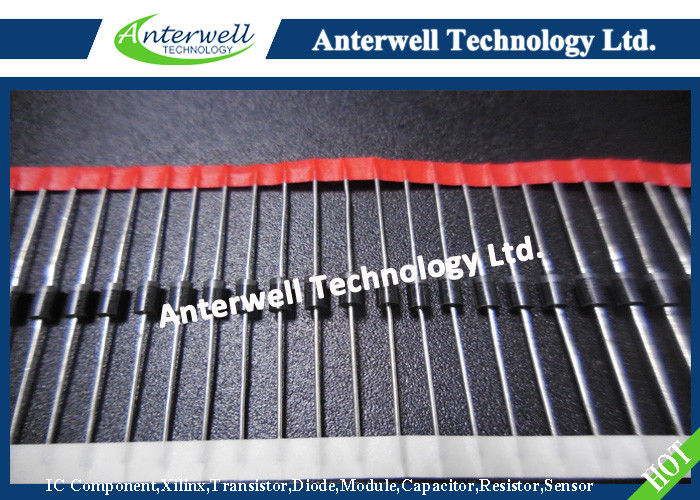

BYV26EGP-E3/73 Glass Passivated Ultrafast Rectifier
FEATURES
Cavity-free glass-passivated junction
Ultrafast reverse recovery time
Low forward voltage drop
Low switching losses, high efficiency
High forward surge capability
Meets environmental standard MIL-S-19500 • Solder dip 260 °C, 40 s
Component in accordance to RoHS 2002/95/EC and WEEE 2002/96/EC
TYPICAL APPLICATIONS
For use in high frequency rectification and freewheeling application in switching mode converters and inverters for consumer, computer and telecommunication.
MECHANICAL DATA
Case: DO-204AC, molded epoxy over glass body Epoxy meets UL 94V-0 flammability rating Terminals: Matte tin plated leads, solderable per J-STD-002 and JESD22-B102 E3 suffix for consumer grade, meets JESD 201 class 1A whisker test, HE3 suffix for high reliability grade (AEC Q101 qualified), meets JESD 201 class 2 whisker test Polarity: Color band denotes cathode end
| MAXIMUM RATINGS (TA = 25 °C unless otherwise noted) | ||||
| PARAMETER | SYMBOL | BYV26DGP | BYV26EGP | UNIT |
| Maximum repetitive peak reverse voltage | VRRM | 800 | 1000 | V |
| Maximum RMS voltage | VRMS | 560 | 700 | V |
| Maximum DC blocking voltage | VDC | 800 | 1000 | V |
|
Maximum average forward rectified current 0.375" (9.5 mm) lead length (Fig. 1) |
IF(AV) | 1.0 | A | |
| Peak forward surge current 10 ms single half sine-wave superimposed on rated load | IFSM | 30 | A | |
| Non repetitive peak reverse energy (1) | ERSM | 10 | mj | |
| Operating junction and storage temperature range | TJ,TSTG | - 65 to + 175 | °C | |
| ELECTRICAL CHARACTERISTICS (TA = 25 °C unless otherwise noted) | ||||||
| PARAMETER | TEST CONDITIONS | SYMBOL | BYV26DGP | BYV26EGP | UNIT | |
| Minimum avalanche breakdown voltage | 100 µA | VBR | 900 | 1100 | V | |
|
Maximum instantaneous forward voltage |
1.0 A | TJ = 25 °C TJ = 175 °C | VF |
2.5 1.3 |
V | |
| Maximum DC reverse current at rated DC blocking voltage | TA = 25 °C TA = 165 °C | IR |
5.0 150 |
µA | ||
| Max. reverse recovery time | F = 0.5 A, IR = 1.0 A, Irr = 0.25 A | trr | 75 | ns | ||
| Typical junction capacitance | 4.0 V, 1 MHz | CJ | 15 | pF | ||
| THERMAL CHARACTERISTICS (TA = 25 °C unless otherwise noted) | ||||
| PARAMETER | SYMBOL | BYV26DGP | BYV26EGP | UNIT |
| Typical thermal resistance (1)(2) |
RθJA RθJL |
70 16 |
°C/W | |
Notes: (1) Thermal resistance from junction to ambient at 0.375" (9.5 mm) lead length, mounted on P.C.B. with 0.5 x 0.5" (12 x 12 mm) copper pads (2) Thermal resistance from junction to lead at 0.375" (9.5 mm) lead length with both leads attached to heatsink
| ORDERING INFORMATION (Example) | ||||
| PREFERRED P/N | UNIT WEIGHT (g) | PREFERRED PACKAGE CODE | BASE QUANTITY | DELIVERY MODE |
| BYV26EGPE3/54 | 0.428 | 54 | 4000 | 13" diameter paper tape and reel |
| BYV26EGPE3/73 | 0.428 | 73 | 2000 | Ammo pack packaging |
| BYV26EGPHE3/54(1) | 0.428 | 54 | 4000 | 13" diameter paper tape and reel |
| BYV26EGPHE3/73(1) | 0.428 | 73 | 2000 | Ammo pack packaging |
Note: (1) Automotive grade AEC Q101 qualified
