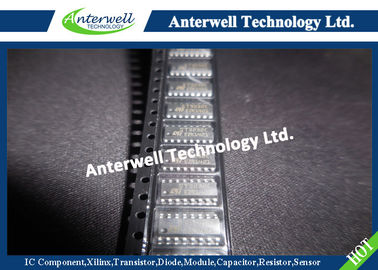

ST3232CTR Common Integrated Circuit Chip Up To 400 Kbps RS-232 Drivers And Receivers

ST3232CTR

3 to 5.5 V, low power, up to 400 kbps RS-232 drivers and receivers

Features

■ 300 µA supply current
■ 300 kbps minimum guaranteed data rate

■ 6 V/µs minimum guaranteed slew rate
■ Meet EIA/TIA-232 specifications down to 3 V

■ Available in SO-16, SO-16 large and TSSOP16

Description
The ST3232 is a 3 V powered EIA/TIA-232 and V.28/V.24
communication interface with low power requirements, high
data-rate capabilities. ST3232 has a proprietary low dropout
transmitter output stage providing true RS-232 performance
from 3 to 5.5 V supplies. The device requires only four small
0.1 mF standard external capacitors for operations from 3 V
supply. The ST3232 has two receivers and two drivers. The
device is guaranteed to run at data rates of 250 kbps while
maintaining RS-232 output levels. Typical applications are Not
-ebook, Subnotebook and Palmtop Computers, Battery Powered

Absolute maximum ratings

Note:  Absolute maximum ratings are those values beyond which damage to the device may occur.
           Functional operation under these condition is not implied.
           Externally applied V+ and V- can have a maximum magnitude of +7 V, but their absolute
           addition can not exceed 13 V.

           Running on internal charge pump, intrinsic self limitation allows exceeding those values
           without any damage.
           Startup voltage sequence (VCC, then V+, then V-) is critical, therefore it is not recommended
           to use this device using externally applied voltage to V+ and V-.


Typical performance characteristics(unless otherwise specified TJ = 25 °C)
