Product Details:
Payment & Shipping Terms:
|
| Power Dissipation: | 1W | Junction Temperature: | 200 °C |
|---|---|---|---|
| Storage Temperature Range: | - 65°C To + 200°C | Datasheet: | Contact Us For More Details |
| Highlight: | bridge rectifier circuit,signal schottky diode |
||

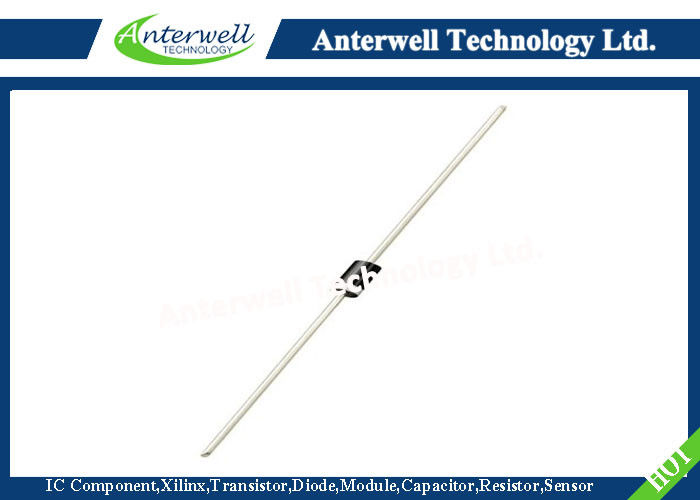

BZV85C7V5 DO-41 SILICON PLANAR POWER ZENER Diode
Features
Silicon Planar Power Zener Diodes for use in stabilizing and clipping circuits with high power rating. The Zener voltage are graded according to the international E 24 standard. Other voltage tolerances and higher Zener voltages upon request.
| DIMENSIONS | |||||
| DIM | inches | mm | Note | ||
| Min | Max | Min | Max | ||
| A | -- | 0.169 | --- | 4.3 | |
| B | -- | 0.110 | --- | 2.8 | |
| C | -- | 0.031 | --- | 0.8 | |
| D | 1.102 | -- | 28.0 | ||
Absolute Maximum Ratings (Ta =25 )
| Symbols | Values | Units | |
| Zener current see Table "Characteristics" | |||
| Power dissipation at Tamb=25°C | Ptot | 1 1) | W |
| Junction temperature | Tj | 200 | °C |
| Storage temperature range | TS | -65 to +200 | °C |
Note: (1) Valid provided that leads at a distance of 8 mm from case are kept at ambient temperature
Characteristics at Tamb=25°C
| Symbols | Min | Typ. | Max. | Units | |
| Thermal resistance junction to ambient Air | RthA | -- | -- | 170 1) | K/W |
| Forward voltage at IF =200mA | VF | -- | -- | 1.2 | V |
