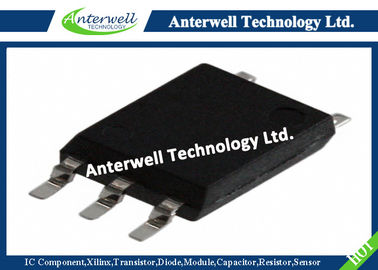

PS9701-E4 HIGH SPEED DIGITAL OUTPUT TYPE 5-PIN SOP PHOTOCOUPLER
DESCRIPTION
The PS9701 is an optically coupled isolator containing a GaAlAs LED on light emitting side (input side) and a photodiode and a signal processing circuit on light receiving side (output side) on one chip. This is SOP (Small Outline Package) type for high-density applications.
FEATURES
High isolation voltage (BV = 2 500 Vr.m.s.)
• Small and thin package (5-pin SOP)
• High-speed response (tPHL = 36 ns TYP., tPLH = 60 ns TYP.)
• Low threshold input current (IFHL = 2.5 mA TYP.)
• Open-collector type
• Ordering number of taping product: PS9701-1-E3, E4, F3, F4
• UL approved: File No. E72422
• VDE0884 approved (Option)
APPLICATIONS
• Computer and peripheral manufactures
• Measurement equipment
• Audio-Visual
ORDERING INFORMATION
| Part Number | Package | Packing Style | Safety Standards Approval | Application Part Number*1 |
| PS9701 | 5-pin SOP | Magazine case 100 pcs | UL approved | PS9701 |
| PS9701-E3 | Embossed Tape 900 pcs/reel | |||
| PS9701-E4 | ||||
| PS9701-F3 | Embossed Tape 3 500 pcs/reel | |||
| PS9701-F4 | ||||
| PS9701-V | Magazine case 100 pcs | VDE0884 approved | ||
| PS9701-V-E3 | Embossed Tape 900 pcs/reel | |||
| PS9701-V-E4 | ||||
| PS9701-V-F3 | Embossed Tape 3 500 pcs/reel | |||
| PS9701-V-F4 |
ABSOLUTE MAXIMUM RATINGS (TA = 25 °C, unless otherwise specified)
| Parameter | Symbo | Ratings | Unit | |
| Diode | Forward Current | IF | 30 | mA |
| Reverse Voltage | VR | 5 | V | |
| Detector | Supply Voltage | VCC | 7 | V |
| Output Voltage | VO | 7 | V | |
| Output Current | IO | 50 | mA | |
| Power Dissipation | PC | 85 | mW | |
| Isolation Voltage*1 | BV | 2500 | Vr.m.s. | |
| Operating Ambient Temperature | TA | –40 to +85 | °C | |
| Storage Temperature | Tstg | –55 to +125 | °C | |
RECOMMENDED OPERATING CONDITIONS
| Parameter | Symbol | MIN. | TYP. | MAX. | Unit |
| Low Level Input Current | IFL | 0 | 250 | µA | |
| High Level Input Current | IFH | 5 | 7.5 | 15 | mA |
| Supply Voltage | VCC | 4.5 | 5.0 | 5.5 | V |
| Operating Ambient Temperature | TA | 0 | 25 | 70 | °C |
