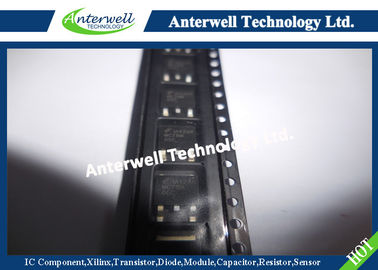

MC78M05CDTX Electronic IC Chips 3-Terminal 0.5 A Positive Voltage Regulator

: Large Image : MC78M05CDTX Electronic IC Chips 3-Terminal 0.5 A Positive Voltage Regulator

Product Details:

Place of Origin:	Malaysia
Brand Name:	FAIRCHILD
Certification:	Original Factory Pack
Model Number:	MC78M05CDTX

Payment & Shipping Terms:

Minimum Order Quantity:	10pcs
Price:	Negotiation
Packaging Details:	REEL
Delivery Time:	1 Day
Payment Terms:	T/T, Western Union,PayPal
Supply Ability:	23500PCS

Contact Now

Detailed Product Description

VI:

35V

TOPR:

0 To +125°C

TJ(MAX):

150°C

TSTG:

-65 To +150°C

Highlight:

electronic integrated circuit

linear integrated circuits

MC78M05CDTX
3-Terminal 0.5 A Positive Voltage Regulator

Features
• Output Current up to 0.5 A
• Output Voltages of 5 V
• Thermal Overload Protection
• Short-Circuit Protection
• Output Transistor Safe Operating Area (SOA) Protection

Absolute Maximum Ratings

Symbol	Parameter		Value	Unit
VI	Input Voltage (for VO = 5 V)		35	V
RθJC	Thermal Resistance, Junction-Case(2)	TO-220 (TC = +25°C)	2.5	°C/W
RθJA	Thermal Resistance, Junction-Air(2, 3)	TO-220 (TA = +25°C)	66	°C/W
RθJA	Thermal Resistance, Junction-Air(2, 3)	D-PAK (TA = +25°C)	92	°C/W
TOPR	Operating Junction Temperature Range		0 to +125	°C
TJ(MAX)	Maximum Junction Temperature Range		150	°C
TSTG	Storage Temperature Range		-65 to +150	°C

Notes:

2. Thermal resistance test board.
Size: 76.2 mm x 114.3 mm x 1.6 mm (1S0P)

JEDEC standard: JESD51-3, JESD51-7

3. Assume no ambient airflow.

MC78M05CDTX Electronic IC Chips 3-Terminal 0.5 A Positive Voltage Regulator

A part of stock list

TRANS BC848B,215	NXP	1427/1KW	SOT-23
DIODO FEP16DT	FSC	A1104/AB04	TO-220
TRANS. TIP31C	FSC	2016/09/13/B08	TO-220
DIODO MUR860G	ON	608	TO-220
DIODO MUR460RLG	ON	1613	DO-201AD
UMK316AB7475KL 1206 4.7UF 50V X7R	Taiyoyunden	1608	SMD1206
BZX84-C6V2	NXP	1610/Z4W	SOT-23
RP164PJ331CS 330R	SAMSUNG	20160922	SMD0603x4
RC1210JR-074R7L 1210 4R7 5%	YAGEO	1638	SMD1210
LM833DR	TI	0AMASD5	SOP-8
LMH6646MAX	TI	MUAB/MGAB	SOP-8
LM8261M5	TI	A45A	SOT23-5
M24C04-WMN6TP	STM	K235Q	SOP-8
RSX101VA-30TR	ROHM	R	SOD-323
IRLML2502TRPBF	IR	G6109	SOT-23
CL21A106KOQNNNE	SAMSUNG	AC8NOK9	SMD0805
LM2936Z-5.0	NSC	81AX	TO-92
HEF4538BT,653	NXP	1610	SOP-16
DAC5571IDBVT	TI	D571	SOT23-6
DS36C279M/NOPB	NSC	43RC	SOP-8
1206 1R2 1% RC1206FR-071R2L	YAGEO	1638	SMD1206
0603 120R 1% RC0603FR-07120RL	YAGEO	1635	SMD0603
0603 22K 1% RC0603FR-0722KL	YAGEO	1635	SMD0603
AT24C64CN-SH-T	ATMEL	008/64C 1	SOP-8
TLC072CDGN	TI	TI8A/ADV	MSOP-8
74HC238D	NXP	1625	SOP-16
S5M-E3/57T	VISHAY	1603/5M	SMC
US1M-E3/61T	VISHAY	1628/UM	SMA
MC78M05CDTX	FSC	1A42AD	TO-252
HY-SRF05		16+
