Tps54160dgqr 1.5-A, 60v Step Down Swift Dc/Dc Converter With Eco Mode Voltage Regulator

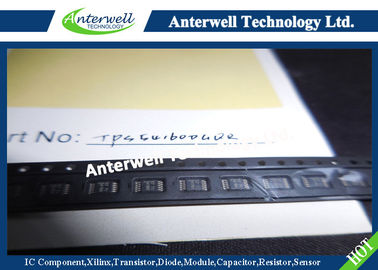

: Large Image : Tps54160dgqr 1.5-A, 60v Step Down Swift Dc/Dc Converter With Eco Mode Voltage Regulator

Product Details:

Place of Origin:	original factory
Brand Name:	Anterwell
Certification:	new & original
Model Number:	TPS54160DGQR

Payment & Shipping Terms:

Minimum Order Quantity:	10pcs
Price:	Negotiate
Packaging Details:	Please contact me for details
Delivery Time:	1 day
Payment Terms:	T/T, Western Union, Paypal
Supply Ability:	8500pcs

Contact Now

Detailed Product Description

Voltage Difference:

±200mV

Operating Junction Temperature:

–40 To 150°C

Storage Temperature:

–65 To 150°C

Mounting Style:

SMD/SMT

Highlight:

electronics ic chip

integrated circuit ic

TPS54160DGQR
1.5-A, 60V STEP DOWN SWIFT DC/DC CONVERTER WITH ECO-MODE

FEATURES
•3.5V to 60V Input Voltage Range
•200-mΩ High-Side MOSFET
•High Efficiency at Light Loads with a Pulse
•Skipping Eco-Mode™
•116µA Operating Quiescent Current
•1.3µA Shutdown Current
•300kHz to 2.5MHz Switching Frequency

•Synchronizes to External Clock

•Adjustable Slow Start/Sequencing

•UV and OV Power Good Output
•Adjustable UVLO Voltage and Hysteresis
•0.8-V Internal Voltage Reference

• MSOP10 Package With PowerPAD™

Tps54160dgqr 1.5-A, 60v Step Down Swift Dc/Dc Converter With Eco Mode Voltage Regulator
ABSOLUTE MAXIMUM RATINGS(1)

		VALUE	UNIT
Input voltage	VIN	–0.3 to 65	V
	EN	–0.3 to 5
	BOOT	73
	VSENSE	–0.3 to 3
	COMP	–0.3 to 3
	PWRGD	–0.3 to 6
	SS/TR	–0.3 to 3
	RT/CLK	–0.3 to 3.6
Output voltage	BOOT-PH	8	V
	PH	–0.6 to 65
	PH, 10-ns Transient	–2 to 65
Voltage Difference	PAD to GND	±200	mV
Source current	EN	100	µA
	BOOT	100	mA
	VSENSE	10	µA
	PH	Current Limit	A
	RT/CLK	100	µA
Sink current	VIN	Current Limit	A
	COMP	100	µA
	PWRGD	10	mA
	SS/TR	200	µA
Electrostatic Discharge (HBM) QSS 009-105 (JESD22-A114A)		1	kV
Electrostatic Discharge (CDM) QSS 009-147 (JESD22-C101B.01)		500	V
Operating junction temperature		–40 to 150	°C
Storage temperature		–65 to 150	°C

(1) Stresses beyond those listed under absolute maximum ratings may cause permanent damage to the device. These are stress ratings only and functional operation of the device at these or any other conditions beyond those indicated under recommended operating conditions is not implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.
