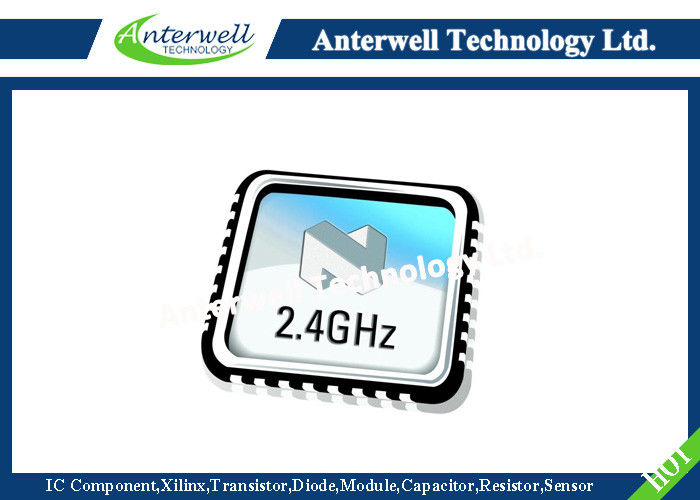

NRF24L01 Integrated Circuit Chip Single chip 2.4 GHz Transceiver

NRF24L01 Single chip 2.4 GHz Transceiver

FEATURES

True single chip GFSK transceiver

Complete OSI Link Layer in hardware

Enhanced ShockBurst™

Auto ACK & retransmit

Address and CRC computation

On the air data rate 1 or 2Mbps

Digital interface (SPI) speed 0-10 Mbps

125 RF channel operation

Short switching time enable frequency hopping

Fully RF compatible with nRF24XX

5V tolerant signal input pads

20-pin package (QFN20 4x4mm)

Uses ultra low cost +/- 60 ppm crystal

Uses low cost chip inductors and 2-layer PCB

Power supply range: 1.9 to 3.6 V

APPLICATIONS

Wireless mouse, keyboard, joystick

Keyless entry

Wireless data communication

Alarm and security systems

Home automation

Surveillance

Automotive

Telemetry

Intelligent sports equipment

Industrial sensors

toys

GENERAL DESCRIPTION

nRF24L01 is a single chip radio transceiver for the world wide 2.4 - 2.5 GHz ISM band. The transceiver consists of a fully integrated frequency synthesizer, a power amplifier, a crystal oscillator, a demodulator, modulator and Enhanced ShockBurst™ protocol engine. Output power, frequency channels, and protocol setup are easily programmable through a SPI interface. Current consumption is very low, only 9.0mA at an output power of -6dBm and 12.3mA in RX mode. Built-in Power Down and Standby modes makes power saving easily realizable.

QUICK REFERENCE DATA

PIN FUNCTIONS
