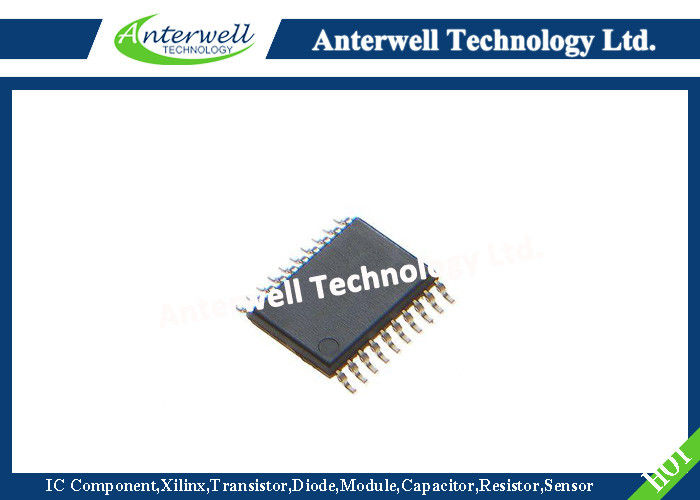

STM8S103F3P6TR Access line 8 Kbytes Flash data EEPROM 10-bit ADC 3 timers

STM8S103F3P6TR Access line 8 Kbytes Flash, data EEPROM,10-bit ADC, 3 timers





Features



Core

16 MHz advanced STM8 core with Harvard architecture and 3-stage pipeline

Extended instruction set Memories

Program memory:8 Kbytes Flash;dataretention 20 years at 55 °C after 10 kcycles

Data memory: 640 bytes true data EEPROM; endurance 300 kcycles

RAM: 1 Kbytes Clock, reset and supply management

2.95 to 5.5 V operating voltage

Flexible clock control, 4 master clock sources: - Low power crystal resonator oscillator - External clock input - Internal, user-trimmable 16 MHz RC - Internal low power 128 kHz RC

Clock security system with clock monitor

Power management: - Low power modes (wait, active-halt, halt) - Switch-off peripheral clocks individually



Permanentlyactive, low consumptionpower-on and power-down reset



Interrupt management



Nested interrupt controller with 32 interrupts

Up to 27 external interrupts on 6 vectors





Timers

Advanced control timer: 16-bit, 4 CAPCOM channels, 3 complementary outputs, dead-time insertion and flexible synchronization

16-bit general purpose timer, with 3 CAPCOM channels (IC, OC or PWM)

8-bit basic timer with 8-bit prescaler

Auto wake-up timer



Window watchdog and independent watchdog timers



Communications interfaces

UART with clock output for synchronous operation, Smartcard, IrDA, LIN master mode

SPI interface up to 8 Mbit/s

I 2C interface up to 400 Kbit/s



Analog to digital converter (ADC)

10-bit, ±1 LSB ADC with up to 5 multiplexed channels, scan mode and analog watchdog



I/Os

Up to 28 I/Os on a 32-pin package including 21 high sink outputs

Highly robust I/O design, immuneagainst current injection

Development support - Embedded single wire interface module (SWIM) for fast on-chip programming and non intrusive debugging



Unique ID

96-bit unique key for each device





1 Introduction



Thisdatasheet contains thedescriptionof thedevicefeatures,pinout,electrical characteristics, mechanical data and ordering information. • For completeinformationonthe STM8S microcontroller memory, registersandperipherals, please refer to the STM8S microcontroller family reference manual (RM0016). • For information on programming, erasing and protection of the internal Flash memory please refer to the STM8S Flash programming manual (PM0051). • For information on the debug and SWIM (single wire interface module) refer to the STM8 SWIM communication protocol and debug module user manual (UM0470). • For information on the STM8 core, please refer to the STM8 CPU programming manual (PM0044).







2 Description



The STM8S103x access line 8-bit microcontrollers offer 8 Kbytes Flash program memory, plus integrated true data EEPROM. The STM8S microcontroller family reference manual (RM0016) refers to devices in this family as low-density. They provide the following benefits: • Reduced system cost - Integrated true data EEPROM for up to 300 k write/erase cycles - High system integration level with internal clock oscillators, watchdog and brown-out reset. • Performance and robustness - 16 MHz CPU clock frequency - Robust I/O, independent watchdogs with separate clock source - Clock security system • Full documentation and a wide choice of development tools • Advanced core and peripherals made in a state-of-the art technology





Table 1: STM8S103xx access line features

Device	STM8S103K3	STM8S103F3	STM8S103F2
Pin count	32	20	20
Maximum numberof GPIOs (I/Os)	28	16	16
Ext. interrupt pins	27	16	16
Timer CAPCOM channels	7	7	7
Timer complementary outputs	3	2	2
A/D converter channels	4	5	5
High sink I/Os	21	12	12
Low density Flash program memory (bytes)	8K	8K	4K
Data EEPROM (bytes)	640(1)	640(1)	640(1)
RAM (bytes)	1K	1K	1K
Peripheral set	Multipurpose timer (TIM1), SPI, I 2C, UART window WDG,independent WDG, ADC, PWM timer (TIM2),8-bit timer (TIM4)











4 Product overview



Thefollowingsectionintends togiveanoverview of thebasic featuresof thedevicefunctional modules and peripherals. For more detailed information please refer to the corresponding family reference manual (RM0016).





4.1 Central processing unit STM8



The 8-bit STM8 core is designed for code efficiency and performance. It contains 6 internal registers which are directly addressable in each execution context, 20 addressing modes including indexed indirect and relative addressing and 80 instructions.



Architecture and registers



Harvard architecture

3-stage pipeline

32-bit wide program memory bus - single cycle fetching for most instructions

X and Y 16-bit index registers - enabling indexed addressing modes with or without offset and read-modify-write type data manipulations

8-bit accumulator

24-bit program counter - 16-Mbyte linear memory space

16-bit stack pointer - access to a 64 K-level stack

 8-bit condition code register - 7 condition flags for the result of the last instruction



Addressing

20 addressing modes

Indexed indirect addressing mode for look-up tables located anywhere in the address space

Stack pointer relative addressing mode for local variables and parameter passing



Instruction set

80 instructions with 2-byte average instruction size

Standard data movement and logic/arithmetic functions

8-bit by 8-bit multiplication

16-bit by 8-bit and 16-bit by 16-bit division

Bit manipulation

Data transfer between stack and accumulator (push/pop) with direct stack access

Data transfer using the X and Y registers or direct memory-to-memory transfers





4.2 Single wire interface module (SWIM) and debug module (DM)



The single wire interface module and debug module permits non-intrusive, real-time in-circuit debugging and fast memory programming.
