VNQ660SP Integrated Circuit Chip Quad channel high side solid state relay IC DRIVER QUAD

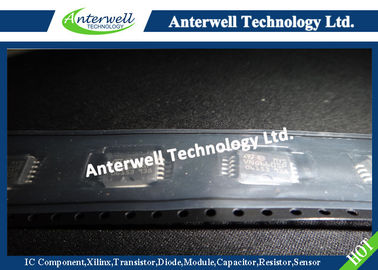

: Large Image : VNQ660SP Integrated Circuit Chip Quad channel high side solid state relay IC DRIVER QUAD

Product Details:

Place of Origin:	original factory
Brand Name:	Anterwell
Certification:	new & original
Model Number:	VNQ660SP

Payment & Shipping Terms:

Minimum Order Quantity:	10pcs
Price:	Negotiate
Packaging Details:	Please contact me for details
Delivery Time:	1 day
Payment Terms:	T/T, Western Union, Paypal
Supply Ability:	8200pcs

Contact Now

Detailed Product Description

VCC:	41V	-VCC:	-0.3V
IIN:	+/- 10 MA	Ptot:	113.6W
TJ:	- 40 To 150°C	Tstg:	-65 To 150 °C
Highlight:	electronics ic chip , integrated circuit ic

VNQ660SP
Quad channel high side solid state relay

■OUTPUT CURRENT PER CHANNEL: 6A
■ CMOS COMPATIBLE INPUTS
■ OPEN LOAD DETECTION (OFF STATE)
■ UNDERVOLTAGE & OVERVOLTAGE nSHUT- DOWN
■ OVERVOLTAGE CLAMP
■ THERMAL SHUT-DOWN
■ CURRENT LIMITATION
■ VERY LOW STAND-BY POWER DISSIPATION

■ PROTECTION AGAINST: nLOSS OF GROUND & LOSS OF VCC
■ REVERSE BATTERY PROTECTION

ABSOLUTE MAXIMUM RATING

Symbol	Parameter	Value	Unit
VCC	Supply voltage (continuous)	41	V
-VCC	Reverse supply voltage (continuous)	-0.3	V
IOUT	Output current (continuous), per each channel	Internally limited	A
IR	Reverse output current (continuous), per each channel	-15	A
IIN	Input current	+/- 10	mA
ISTAT	Status current	+/- 10	mA
IGND	Ground current at TC<25°C (continuous)	-200	mA
VESD	Electrostatic Discharge (Human Body Model: R=1.5KΩ; C=100pF) - INPUT - STATUS - OUTPUT - VCC	4000 4000 5000 5000	V
Ptot	Power dissipation at TC=25°C	113.6	W
Tj	Junction operating temperature	-40 to 150	°C
Tstg	Storage temperature	-65 to 150	°C
EC	Non repetitive clamping energy at TC=25°C	150	mJ

VNQ660SP Integrated Circuit Chip Quad channel high side solid state relay IC DRIVER QUAD
