Microchips And Integrated Circuits SN74HC132N Schmitt Trigger Inputs

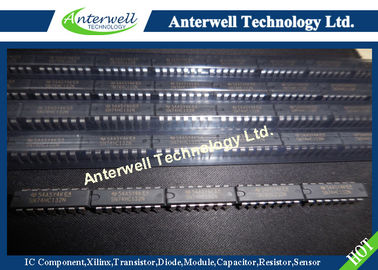

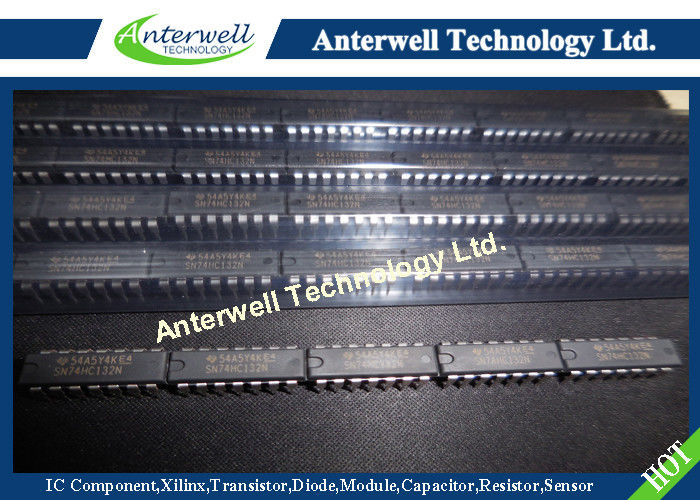

: Large Image : Microchips And Integrated Circuits SN74HC132N Schmitt Trigger Inputs

Product Details:

Place of Origin:	Philippines
Brand Name:	TI
Certification:	Original Factory Pack
Model Number:	SN74HC132N

Payment & Shipping Terms:

Minimum Order Quantity:	20
Price:	Negotiate
Packaging Details:	please contact me for details
Delivery Time:	1
Payment Terms:	T/T, Western Union,Paypal
Supply Ability:	20000

Contact Now

Detailed Product Description

Features:	Wide Operating Voltage Range Of 2 V To 6 V	Features3:	Low Power Consumption, 20-µA Max ICC
Features4:	Typical Tpd = 14 Ns	Features5:	±4-mA Output Drive At 5 V
Features6:	Low Input Current Of 1 µA Max	Features2:	Outputs Can Drive Up To 10 LSTTL Loads
Highlight:	chip in electronics , integrated components

Microchips And Integrated Circuits SN74HC132N Schmitt Trigger Inputs

Features

Wide Operating Voltage Range of 2 V to 6 V

Outputs Can Drive Up To 10 LSTTL Loads

Low Power Consumption, 20-µA Max ICC

Typical tpd = 14 ns ±4-mA Output Drive at 5 V

Low Input Current of 1 µA Max Operation From Very Slow Input Transitions

Temperature-Compensated Threshold Levels

High Noise Immunity

Same Pinouts as ’HC00

description/ordering information

Each circuit functions as a NAND gate, but because of the Schmitt action, it has different input threshold levels for positive- and negative-going signals. The ’HC132 devices perform the Boolean function Y = A • B or Y = A + B in positive logic. These circuits are temperature compensated and can be triggered from the slowest of input ramps and still give clean jitter-free output signals.

TA	PACKAGE†	ORDERABLE PART NUMBER		TOP-SIDE MARKING
−40°C to 85°C	PDIP − N	Tube of 25	SN74HC132N	SN74HC132N
	SOIC − D	Tube of 50	SN74HC132D	HC132
		Reel of 2500	SN74HC132DR
		Reel of 250	SN74HC132DT
	SOP − NS	Reel of 2000	SN74HC132NSR	HC132
	SSOP − DB	Reel of 2000	SN74HC132DBR	HC132
	TSSOP − PW	Tube of 90	SN74HC132PW	HC132
		Reel of 2000	SN74HC132PWR
		Reel of 250	SN74HC132PWT
−55°C to 125 C to 125°C	CDIP − J	Tube of 25	SNJ54HC132J	SNJ54HC132J
	CFP − W	Tube of 150	SNJ54HC132W	SNJ54HC132W
	LCCC − FK	Tube of 55	SNJ54HC132FK	SNJ54HC132FK

absolute maximum ratings over operating free-air temperature range (unless otherwise noted)†

Supply voltage range, VCC −0.5 V to 7 V

Input clamp current, IIK (VI < 0 or VI > VCC) (see Note 1) ±20 mA

Output clamp current, IOK (VO < 0 or VO > VCC) (see Note 1) ±20 mA

Continuous output current, IO (VO = 0 to VCC) . ±25 mA

Continuous current through VCC or GND . ±50 mA

Package thermal impedance, θJA (see Note 2):

D package 86 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . °C/W

DB package 96 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . °C/W

N package 80 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . °C/W

NS package 76 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . °C/W

PW package 113 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . °C/W

† Stresses beyond those listed under “absolute maximum ratings” may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated under “recommended operating conditions” is not implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability. NOTES: 1. The input and output voltage ratings may be exceeded if the input and output current ratings are observed. 2. The package thermal impedance is calculated in accordance with JESD 51-7.

PARAMETER MEASUREMENT INFORMATION
