Surface Mount SMD Ferrite Bead SS1H10-E3-61T High Voltage Schottky Rectifier

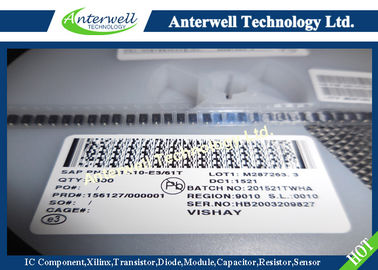

Large Image : Surface Mount SMD Ferrite Bead SS1H10-E3-61T High Voltage Schottky Rectifier

Product Details:

Place of Origin:	Philippines
Brand Name:	VISHAY
Certification:	Original Factory Pack
Model Number:	SS1H10-E3-61T

Payment & Shipping Terms:

Minimum Order Quantity:	20
Price:	Negotiate
Packaging Details:	please contact me for details
Delivery Time:	1
Payment Terms:	T/T, Western Union,Paypal
Supply Ability:	20000

Contact Now

Detailed Product Description

Features:	Low Profile Package	Features2:	• Ideal For Automated Placement
Features3:	• Guardring For Overvoltage Protection	Features4:	• Low Power Losses, High Efficiency
Features5:	• Low Forward Voltage Drop	Features6:	• Low Leakage Current
Highlight:	ferrite bead model , multilayer ceramic chip capacitors

Surface Mount SMD Ferrite Bead SS1H10-E3-61T High Voltage Schottky Rectifier

FEATURES

• Low profile package Surface Mount SMD Ferrite Bead SS1H10-E3-61T High Voltage Schottky Rectifier

• Ideal for automated placement

• Guardring for overvoltage protection

• Low power losses, high efficiency

• Low forward voltage drop

• Low leakage current

• High surge capability

• Meets MSL level 1, per J-STD-020, LF maximum peak of 260 °C

• Solder dip 260 °C 40 s

• Component in accordance to RoHS 2002/95/EC and WEEE 2002/96/EC

PRIMARY CHARACTERISTICS
I_F(AV)	1.0 A
V_RRM	90 V to 100 V
I_FSM	50 A
V_F	0.62 V
I_R	1.0 µA
T_{J max.}	175 °C

TYPICAL APPLICATIONS

For use in low voltage high frequency inverters, freewheeling, dc-to-dc converters, and polarity protection applications.

MECHANICAL DATA

Case: DO-214AC (SMA) Epoxy meets UL 94V-0 flammability rating

Terminals: Matte tin plated leads, solderable per J-STD-002 and JESD22-B102

E3 suffix for consumer grade, meets JESD 201 class 1A whisker test, HE3 suffix for high reliability grade (AEC Q101 qualified), meets JESD 201 class 2 whisker test

Polarity: Color band denotes the cathode end

RATINGS AND CHARACTERISTICS CURVES

(TA = 25 °C unless otherwise noted)

Surface Mount SMD Ferrite Bead SS1H10-E3-61T High Voltage Schottky Rectifier
