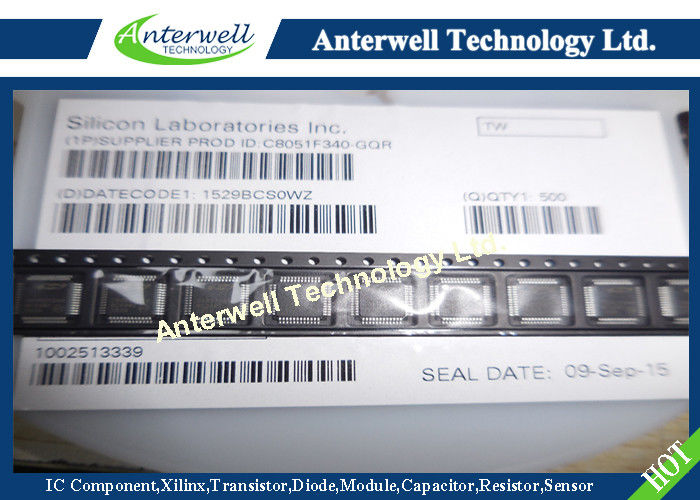

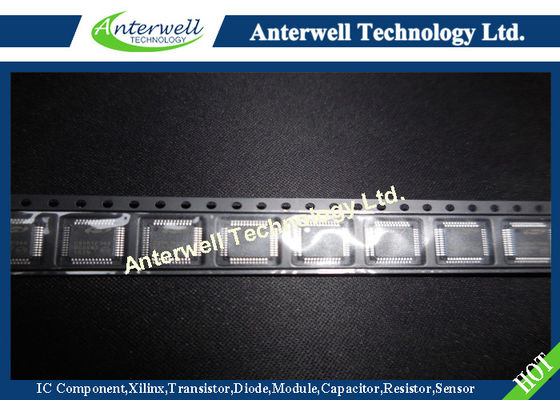

C8051F340-GQR Full Speed USB Flash MCU Famil

Analog Peripherals

- 10-Bit ADC (C8051F340/1/2/3/4/5/6/7/A/B only)

• Up to 200 ksps

• Built-in analog multiplexer with single-ended and differential mode

• VREF from external pin, internal reference, or VDD

• Built-in temperature sensor

• External conversion start input option

- Two comparators - Internal voltage reference (C8051F340/1/2/3/4/5/6/7/A/B only)

- Brown-out detector and POR Circuitry USB Function Controller - USB specification 2.0 compliant

- Full speed (12 Mbps) or low speed (1.5 Mbps) operation

- Integrated clock recovery; no external crystal required for full speed or low speed

- Supports eight flexible endpoints

- 1 kB USB buffer memory - Integrated transceiver; no external resistors required On-Chip Debug

- On-chip debug circuitry facilitates full speed, non-intrusive in-system debug (No emulator required)

- Provides breakpoints, single stepping, inspect/modify memory and registers

- Superior performance to emulation systems using ICE-chips, target pods, and sockets Voltage Supply Input: 2.7 to 5.25 V

- Voltages from 3.6 to 5.25 V supported using On-Chip Voltage Regulator

HIgh Speed 8051 µC Core

- Pipelined instruction architecture; executes 70% of Instructions in 1 or 2 system clocks

- 48 MIPS and 25 MIPS versions available.

- Expanded interrupt handler Memory

- 4352 or 2304 Bytes RAM

- 64 or 32 kB Flash; In-system programmable in 512-byte sectors Digital Peripherals

- 40/25 Port I/O; All 5 V tolerant with high sink current

- Hardware enhanced SPI™, SMBus™, and one or two enhanced UART serial ports

- Four general purpose 16-bit counter/timers

- 16-bit programmable counter array (PCA) with five capture/compare modules

- External Memory Interface (EMIF) Clock Sources

- Internal Oscillator: ±0.25% accuracy with clock recovery enabled. Supports all USB and UART modes

- External Oscillator: Crystal, RC, C, or clock (1 or 2 Pin modes)

- Low Frequency (80 kHz) Internal Oscillator - Can switch between clock sources on-the-fly Packages

- 48-pin TQFP (C8051F340/1/4/5/8/C) - 32-pin LQFP (C8051F342/3/6/7/9/A/B/D)

- 5x5 mm 32-pin QFN (C8051F342/3/6/7/9/A/B)

Temperature Range: –40 to +85 °C
