Product Details:
Payment & Shipping Terms:
|
| Zener Voltage Range: | 3.3 V To 200 V | ESD Rating Of Class 3: | >16 KV |
|---|---|---|---|
| Surge Rating: | Up To 180 W | Packages: | Pb−Free Packages |
| Operating And Storage Temperature Range: | −65 To +200 °C | Max. Steady State Power Dissipation: | 5 W |
| Highlight: | diode rectifier circuit,signal schottky diode |
||

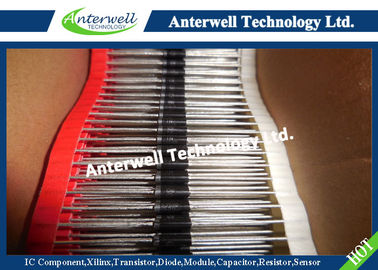

5 Watt Surmetic TM 40
Zener Voltage Regulators
This is a complete series of 5 Watt Zener diodes with tight limits and better operating characteristics that reflect the superior capabilities of silicon−oxide passivated junctions. All this in an axial lead, transfer−molded plastic package that offers protection in all common environmental conditions.
Features
• Zener Voltage Range − 3.3 V to 200 V
• ESD Rating of Class 3 (>16 kV) per Human Body Model
• Surge Rating of up to 180 W @ 8.3 ms
• Maximum Limits Guaranteed on up to Six Electrical Parameters
• Pb−Free Packages are Available
Mechanical Characteristics
CASE: Void free, transfer−molded, thermosetting plastic
FINISH: All external surfaces are corrosion resistant and leads are readily solderable
MAXIMUM LEAD TEMPERATURE FOR SOLDERING PURPOSES: 230°C, 1/16 in. from the case for 10 seconds
POLARITY: Cathode indicated by polarity band
MOUNTING POSITION: Any
| Rating | Symbol | Value | Unit |
| Max. Steady State Power Dissipation @ TL = 75°C, Lead Length = 3/8 in Derate above 75°C | PD |
5
40 |
W
mW/°C |
|
Operating and Storage Temperature Range |
TJ, Tstg | −65 to +200 | °C |
