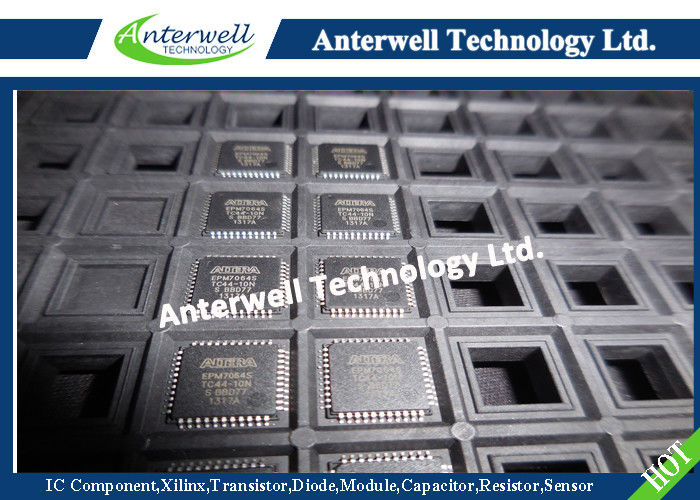

New Part EPM7064STC44-10 MAX 7000 Programmable Logic Device / 1.13 M

MAX 7000

Programmable Logic Device Family

■ High-performance, EEPROM-based programmable logic devices (PLDs) based on second-generation MAX® architecture

■ 5.0-V in-system programmability (ISP) through the built-in IEEE Std. 1149.1 Joint Test Action Group (JTAG) interface available in MAX 7000S devices – ISP circuitry compatible with IEEE Std. 1532

■ Includes 5.0-V MAX 7000 devices and 5.0-V ISP-based MAX 7000S devices

■ Built-in JTAG boundary-scan test (BST) circuitry in MAX7000S devices with 128 or more macrocells

■ Complete EPLD family with logic densities ranging from 600 to 5,000 usable gates (see Tables 1 and 2)

■ 5-ns pin-to-pin logic delays with up to 175.4-MHz counter frequencies (including interconnect)

■ PCI-compliant devices available

   For information on in-system programmable 3.3-V MAX 7000A or 2.5-V MAX 7000B devices, see the MAX 7000A Programmable Logic Device Family Data Sheet or the MAX 7000B Programmable Logic Device Family Data Sheet.

General Description

  The MAX 7000 family of high-density, high-performance PLDs is based on Altera’s second-generation MAX architecture. Fabricated with advanced CMOS technology, the EEPROM-based MAX 7000 family provides 600 to 5,000 usable gates, ISP, pin-to-pin delays as fast as 5 ns, and counter speeds of up to 175.4 MHz. MAX 7000S devices in the -5, -6, -7, and -10 speed grades as well as MAX 7000 and MAX 7000E devices in -5, -6, -7, -10P, and -12P speed grades comply with the PCI Special Interest Group (PCI SIG) PCI Local Bus Specification, Revision 2.2. See Table 3 for available speed grades.

Figure 1. EPM7032, EPM7064 & EPM7096 Device Block Diagram
