Product Details:
Payment & Shipping Terms:
|
| Supply Voltage: | 6V | Output Current: | 30 MA |
|---|---|---|---|
| Maximum Junction Temperature: | +125˚C | Storage Temperature Range: | −65˚C To +150˚C |
| Lead Temperature: | +300˚C | ESD Rating (Human Body Model): | 1000V |
| Highlight: | integrated circuit ic,integrated circuit components |
||

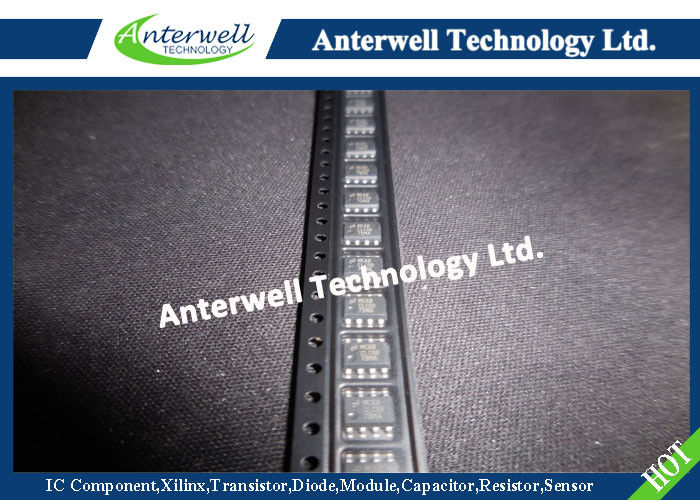

Serial Digital Cable Driver integrated circuit components with Dual Complementary Outputs , CLC007BMA
General Description
National’s Comlinear CLC007 is a monolithic, high-speed cable driver designed for the SMPTE 259M serial digital video data transmission standard. The CLC007 drives 75Ω transmission lines (Belden 8281 or equivalent) at data rates up to 400 Mbps. Controlled output rise and fall times (650 ps typical) minimize transition-induced jitter. The output voltage swing, typically 1.65V, set by an accurate, low-drift internal bandgap reference, delivers an 800 mV swing to backmatched and terminated 75Ω cable. The CLC007’s class AB output stage consumes less power than other designs, 195 mW with all outputs terminated, and requires no external bias resistors. The differential inputs accept a wide range of digital signals from 200 mVp-p to ECL levels within the specified common-mode limits. All this make the CLC007 an excellent general purpose high speed driver for digital applications. The CLC007 is powered from a single +5V or −5.2V supply and comes in an 8-pin SOIC package.
Applications
Digital routers and distribution amplifiers
Coaxial cable driver for digital transmission line
Twisted pair driver
Digital distribution amplifiers
SMPTE, Sonet/SDH, and ATM compatible driver
Buffer applications
