Silicon PNP Epitaxial Planar Transistor , 2SB1560 audio power mosfet

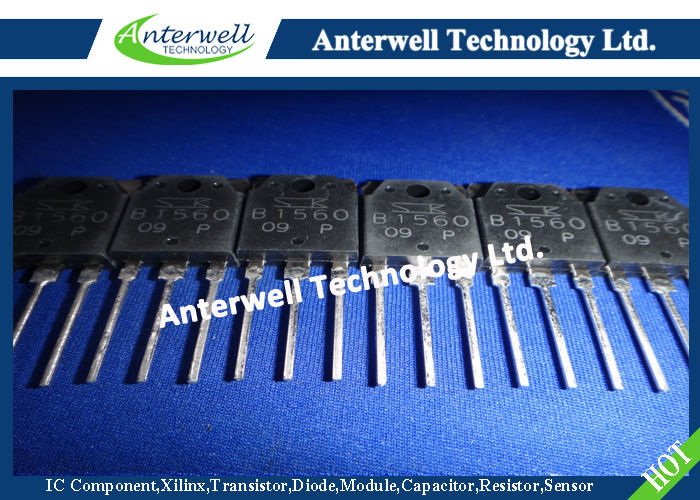

: Large Image : Silicon PNP Epitaxial Planar Transistor , 2SB1560 audio power mosfet

Product Details:

Place of Origin:	Philippines
Brand Name:	SANKEN
Certification:	Original Factory Pack
Model Number:	2SB1560

Payment & Shipping Terms:

Minimum Order Quantity:	20
Price:	Negotiate
Packaging Details:	please contact me for details
Delivery Time:	1
Payment Terms:	T/T, Western Union,Paypal
Supply Ability:	20000

Contact Now

Detailed Product Description

Open Emitter:

-160 V

Open Base:

-150 V

Open Collector:

-5 V

TC=25℃:

100 W

Highlight:

npn smd transistor

silicon power transistors

Silicon PNP Epitaxial Planar Transistor , 2SB1560 audio power mosfet

DESCRIPTION

·With TO-3PN package

·Complement to type 2SD2390 Silicon PNP Epitaxial Planar Transistor , 2SB1560 audio power mosfet

APPLICATIONS

·Audio ,regulator and general purpose

PINNING

PIN	DESCRIPTION
1	Base
2	Collector;connected to mounting base
3	Emitter

Absolute maximum ratings(Ta=℃)

SYMBOL	PARAMETER	CONDITIONS	VALUE	UNIT
VCBO	Collector-base voltage	Open emitter	-160	V
VCEO	Collector-emitter voltage	Open base	-150	V
VEBO	Emitter-base voltage	Open collector	-5	V
IC	Collector current		-10	A
IB	Base current		1	A
PC	Collector power dissipation	TC=25℃	100	W
Tj	Junction temperature		150	℃
