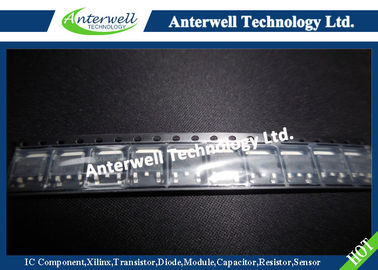

1.0A Low Dropout Voltage Regulator with Shut down Switch rectifier diode circuit BA90BCOFP
Description
The BA□□BC0 are low-saturation regulators with an output current of 1.0 A and an output voltage accuracy of 2%. A broad output voltage range is offered, from 1.5V to 10V, and built-in overcurrent protection and thermal shutdown (TSD) circuits prevent damage due to short-circuiting and overloading, respectively.
Features
1) Output current: 1 A (min.)
2) Output voltage accuracy: 2%
Broad output range available: 1.5 V -10 V (BA□□BC0 series)
3) Low saturation-voltage type with PNP output
4) Built-in overcurrent protection circuit
5) Built-in thermal shutdown circuit
6) Integrated shutdown switch
(BA□□BC0WT, BA□□BC0WT-5, or BA□□BC0WFP Series, BA00BC0WCP-V5)
7) Operating temperature range: −40°C to +105°C
Applications
All electronic devices that use microcontrollers and logic circuits
Electrical Characteristics Curves
| Parameter | Symbol | Min. | Max. | Unit |
| Input power supply voltage | VCC*5 | 3.0 | 16.0 | V |
| Input power supply voltage | VcC*6 | Vo+1.0 | 16.0 | V |
| Output current | Io | - | 1 | A |
| Variable output voltage setting value | Vo | 1.5 | 12 | V |
