NPN General Purpose Rectifier Diode BC848B Plastic Encapsulate Transistors

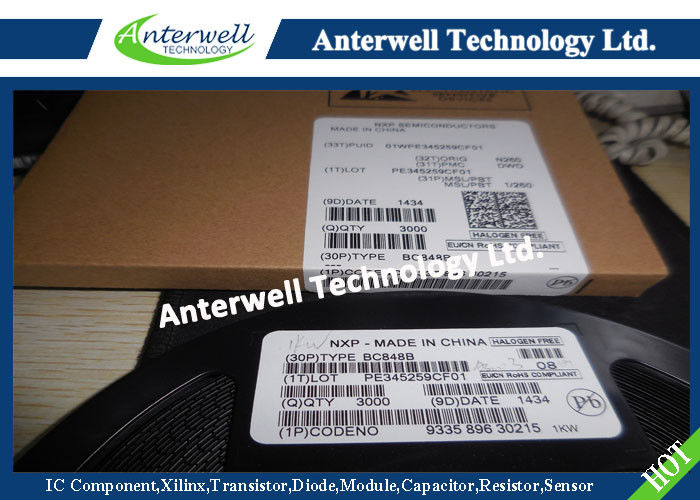

: Large Image : NPN General Purpose Rectifier Diode BC848B Plastic Encapsulate Transistors

Product Details:

Place of Origin:	Original
Brand Name:	PHILIPS
Certification:	Original Factory Pack
Model Number:	BC848B

Payment & Shipping Terms:

Minimum Order Quantity:	5pcs
Price:	Negotiation
Packaging Details:	please contact me for details
Delivery Time:	1 Day
Payment Terms:	T/T, Western Union,PayPal
Supply Ability:	290PCS

Contact Now

Detailed Product Description

Collector-base Voltage:	30 V	Collector-emitter Voltage:	30 V
Emitter-base Voltage:	5 V	Collector Current:	100 MA
Peak Collector Current:	200 MA
Highlight:	diode rectifier circuit , bridge rectifier circuit

0.2 Watts NPN Plastic-Encapsulate Transistors

Features

♦Ideally suited for automatic insertion

♦Epitaxial planar die construction

♦For switching, AF driver and amplifier applications

♦Complementary NPN type available(BC856)

♦Qualified to AEC-Q101 standards for high reliability

Mechanical Data

♦Case: SOT-23, Molded plastic

♦Case material: molded plastic. UL flammability classification rating 94V-0

♦Moisture sensitivity: Level 1 per J-STD-020C

♦Terminals: Solderable per MIIL-STD-202, Method 208

♦Lead free plating

♦Marking & Polarity: See diagram

♦Weight: 0.008 gram (approx.) Dimensions

Package outline

NPN General Purpose Rectifier Diode BC848B Plastic Encapsulate Transistors

Tag:

Contact Person: Miss. Sharon Yang

Tel: 86-755-23616356

Fax: 86-755-23617396
