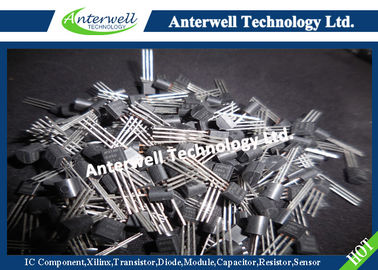

Series of Adjustable Power Mosfet Transistor Micropower Voltage Regulators LP2950CZ-5.0

LP2950/LP2951 Series of Adjustable Micropower Voltage Regulators

General Description

The LP2950 and LP2951 are micropower voltage regulators with very low quiescent current (75µA typ.) and very low dropout voltage (typ. 40mV at light loads and 380mV at 100mA). They are ideally suited for use in battery-powered systems. Furthermore, the quiescent current of the LP2950/ LP2951 increases only slightly in dropout, prolonging battery life. The LP2950-5.0 is available in the surface-mount D-Pak package, and in the popular 3-pin TO-92 package for pincompatibility with older 5V regulators. The 8-lead LP2951 is available in plastic, ceramic dual-in-line, LLP, or metal can packages and offers additional system functions. One such feature is an error flag output which warns of a low output voltage, often due to falling batteries on the input. It may be used for a power-on reset. A second feature is the logic-compatible shutdown input which enables the regulator to be switched on and off. Also, the part may be pin-strapped for a 5V, 3V, or 3.3V output (depending on the version), or programmed from 1.24V to 29V with an external pair of resistors. Careful design of the LP2950/LP2951 has minimized all contributions to the error budget. This includes a tight initial tolerance (.5% typ.), extremely good load and line regulation

Features

n 5V, 3V, and 3.3V versions available

n High accuracy output voltage

n Guaranteed 100mA output current

n Extremely low quiescent current

n Low dropout voltage

n Extremely tight load and line regulation

n Very low temperature coefficient

n Use as Regulator or Reference

n Needs minimum capacitance for stability

n Current and Thermal Limiting

n Stable with low-ESR output capacitors (10mΩ to 6Ω)

LP2951 versions only

n Error flag warns of output dropout

n Logic-controlled electronic shutdown

n Output programmable from 1.24 to 29V
