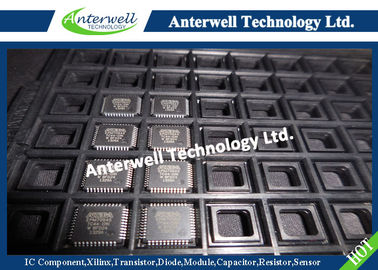

MAX 7000 Programmable Logic Device 1.13 M Programmable Logic Device Family EPM7064STC44-10N

Features

■ High-performance, EEPROM-based programmable logic devices (PLDs) based on second-generation MAX® architecture

■ 5.0-V in-system programmability (ISP) through the built-in IEEE Std. 1149.1 Joint Test Action Group (JTAG) interface available in MAX 7000S devices – ISP circuitry compatible with IEEE Std. 1532

■ Includes 5.0-V MAX 7000 devices and 5.0-V ISP-based MAX 7000S devices

■ Built-in JTAG boundary-scan test (BST) circuitry in MAX7000S devices with 128 or more macrocells

■ Complete EPLD family with logic densities ranging from 600 to 5,000 usable gates (see Tables 1 and 2)

■ 5-ns pin-to-pin logic delays with up to 175.4-MHz counter frequencies (including interconnect)

■ PCI-compliant devices available

Figure 1. EPM7032, EPM7064 & EPM7096 Device Block Diagram

Design Security

All MAX 7000 devices contain a programmable security bit that controls access to the data programmed into the device. When this bit is programmed, a proprietary design implemented in the device cannot be copied or retrieved. This feature provides a high level of design security because programmed data within EEPROM cells is invisible. The security bit that controls this function, as well as all other programmed data, is reset only when the device is reprogrammed.
