Single Phase Glass Passivated Bridge Rectifier 25.0 Amp Glass Passivated Bridge Rectifiers Gbj2510

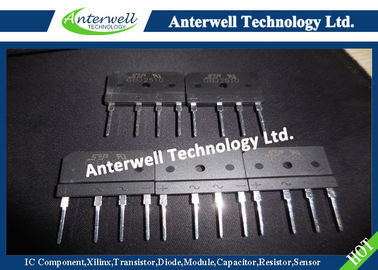

: Large Image : Single Phase Glass Passivated Bridge Rectifier 25.0 Amp Glass Passivated Bridge Rectifiers Gbj2510

Product Details:

Place of Origin:	Thailand
Brand Name:	MIC
Certification:	Original Factory Pack
Model Number:	GBJ2510

Payment & Shipping Terms:

Minimum Order Quantity:	20pcs
Price:	Negotiation
Packaging Details:	please contact me for details
Delivery Time:	1 Day
Payment Terms:	T/T, Western Union,PayPal
Supply Ability:	5200PCS

Contact Now

Detailed Product Description

VRRM:	1000 Volts	VRMS:	700 Volts
VDC:	100 Volts	I(AV):	3.5 Amps
IFSM:	240 Amps
Highlight:	power mosfet ic , multi emitter transistor

GBJ25005 THRU GBJ2510 C

Single Phase Glass Passivated Bridge Rectifier 25.0 Amp Glass Passivated Bridge Rectifiers Gbj2510 FEATURES

· Plastic package has UL Flammability Glassification 94V-0

· High case dielectric strength of 1500 VRMS

· Ideal for printed circuit boards

· Glass passivated chip junctions

· High surge current capability

· High temperature soldering guaranteed 260℃/10 seconds, 0.375”(9.5mm) lead length 5 lbs. (2.3Kg) tension

MECHANICAL DATA

· Case: molded plastic body

· Terminal:

Plated leads solderable per MIL-STD-750 Method 2026

· Mounting position: Any (Note 3)

· Mounting Torque: 8 in – 1bs max.

· Weight: 0.26 ounce, 7.0 gram

RATINGS AND CHARACTERISTIC CURVES GBJ25A THRU GBJ25M
