General Purpose Amplifier Low Speed Switching Applications Electrically Similar to Popular TIP42C MJD42C

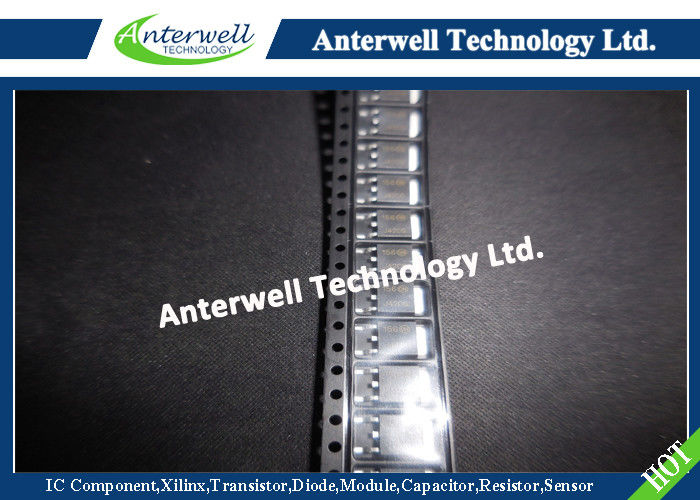

: Large Image : General Purpose Amplifier Low Speed Switching Applications Electrically Similar to Popular TIP42C MJD42C

Product Details:

Place of Origin:	Original
Brand Name:	FAIRCHILD
Certification:	Original Factory Pack
Model Number:	MJD42C

Payment & Shipping Terms:

Minimum Order Quantity:	5pcs
Price:	Negotiation
Packaging Details:	please contact me for details
Delivery Time:	1 Day
Payment Terms:	T/T, Western Union,PayPal
Supply Ability:	290PCS

Contact Now

Detailed Product Description

Collector-Base Voltage:	-100 V	Collector-Emitter Voltage:	-100 V
Emitter-Base Voltage:	-5 V	Collector Current (DC):	-6 A
Collector Current (Pulse):	-10 A
Highlight:	diode rectifier circuit , signal schottky diode

MJD42C

General Purpose Amplifier

Low Speed Switching Applications

• Load Formed for Surface Mount Application (No Suffix)

• Straight Lead (I.PACK, “- I” Suffix)

• Electrically Similar to Popular TIP42C

PNP Epitaxial Silicon Transistor

Absolute Maximum Ratings TC=25°C unless otherwise noted

Symbol	Parameter	Value	Units
V_CBO	Collector-Base Voltage	-100	V
V_CEO	Collector-Emitter Voltage	-100	V
V_EBO	Emitter-Base Voltage	-5	V
I_C	Collector Current (DC)	-6	A
I_CP	Collector Current (Pulse)	-10	A
I_B	Base Current	-2	A
TJ	Junction Temperature	150	°C
T_STG	Storage Temperature	- 65 ~ 150	°C
