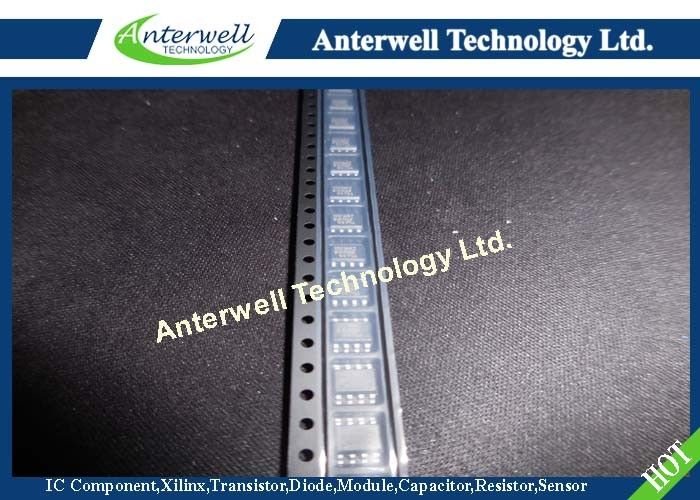

Dual-Channel Digital Isolators ADUM1201ARZ

FEATURES

Narrow body SOIC 8-lead package

Low power operation

    5 V operation

       1.1 mA per channel maximum @ 0 Mbps to 2 Mbps

       3.7 mA per channel maximum @ 10 Mbps

       8.2 mA per channel maximum @ 25 Mbps

    3 V operation

       0.8 mA per channel maximum @ 0 Mbps to 2 Mbps

       2.2 mA per channel maximum @ 10 Mbps

       4.8 mA per channel maximum @ 25 Mbps

Bidirectional communication

3 V/5 V level translation

High temperature operation: 105°C

High data rate: dc to 25 Mbps (NRZ)

Precise timing characteristics

    3 ns maximum pulse-width distortion

    3 ns maximum channel-to-channel matching

High common-mode transient immunity: > 25 kV/µs

Safety and regulatory approvals

    UL recognition

       2500 V rms for 1 minute per UL 1577

    CSA component acceptance notice #5A

    VDE certificate of conformity

       DIN EN 60747-5-2 (VDE 0884 Part 2): 2003-01

       DIN EN 60950 (VDE 0805): 2001-12; DIN EN 60950: 2000

V_IORM = 560 V peak

APPLICATIONS

Size-critical multichannel isolation

SPI® interface/data converter isolation

RS-232/RS-422/RS-485 transceiver isolation

Digital field bus isolation

GENERAL DESCRIPTION

The ADuM120x are dual-channel digital isolators based on

Analog Devices’ iCoupler® technology. Combining high speed

CMOS and monolithic transformer technology, these isolation

components provide outstanding performance characteristics

superior to alternatives such as optocoupler devices.

By avoiding the use of LEDs and photodiodes, iCoupler devices

remove the design difficulties commonly associated with

optocouplers. The typical optocoupler concerns regarding

uncertain current transfer ratios, nonlinear transfer functions,

and temperature and lifetime effects are eliminated with the

simple iCoupler digital interfaces and stable performance

characteristics. The need for external drivers and other discrete

components is eliminated with these iCoupler products.

Furthermore, iCoupler devices consume one-tenth to one-sixth

the power of optocouplers at comparable signal data rates.

The ADuM120x isolators provide two independent isolation

channels in a variety of channel configurations and data rates

(see the Ordering Guide). Both parts operate with the supply

voltage on either side ranging from 2.7 V to 5.5 V, providing

compatibility with lower voltage systems as well as enabling a

voltage translation functionality across the isolation barrier. In

addition, the ADuM120x provide low pulse-width distortion

(< 3 ns for CR grade) and tight channel-to-channel matching

(< 3 ns for CR grade). Unlike other optocoupler alternatives, the

ADuM120x isolators have a patented refresh feature that

ensures dc correctness in the absence of input logic transitions

and during power-up/power-down conditions.

                                                     FUNCTIONAL BLOCK DIAGRAMS
