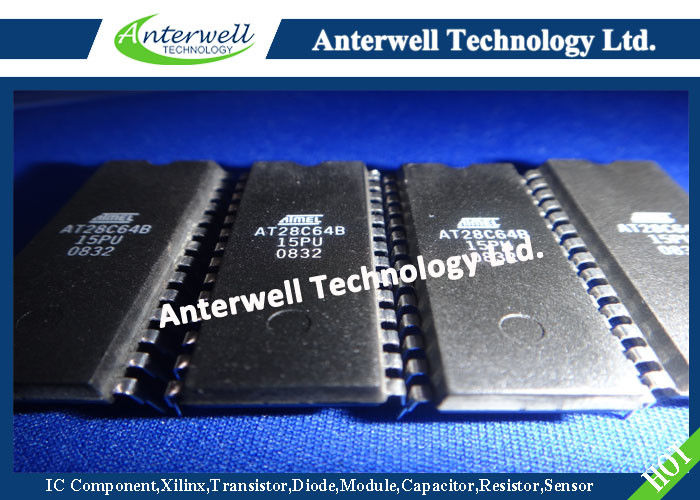

AT28C64B-15PU Programmable IC Chips Electronics Components

64K (8K x 8) Parallel EEPROM with Page Write and Software Data Protection AT28C64B

Features

• Fast Read Access Time – 150 ns

• Automatic Page Write Operation

  – Internal Address and Data Latches for 64 Bytes

• Fast Write Cycle Times

  – Page Write Cycle Time: 10 ms Maximum (Standard)

     2 ms Maximum (Option – Ref. AT28HC64BF Datasheet)

  – 1 to 64-byte Page Write Operation

• Low Power Dissipation

  – 40 mA Active Current

  – 100 µA CMOS Standby Current

• Hardware and Software Data Protection

• DATA Polling and Toggle Bit for End of Write Detection

• High Reliability CMOS Technology

  – Endurance: 100,000 Cycles

  – Data Retention: 10 Years

• Single 5V ±10% Supply

• CMOS and TTL Compatible Inputs and Outputs

• JEDEC Approved Byte-wide Pinout

• Industrial Temperature Ranges

• Green (Pb/Halide-free) Packaging Option

1. Description

The AT28C64B is a high-performance electrically-erasable and programmable readonly memory (EEPROM). Its 64K of memory is organized as 8,192 words by 8 bits. Manufactured with Atmel’s advanced nonvolatile CMOS technology, the device offers access times to 150 ns with power dissipation of just 220 mW. When the device is deselected, the CMOS standby current is less than 100 µA.

The AT28C64B is accessed like a Static RAM for the read or write cycle without the need for external components. The device contains a 64-byte page register to allow writing of up to 64 bytes simultaneously. During a write cycle, the addresses and 1 to 64 bytes of data are internally latched, freeing the address and data bus for other operations. Following the initiation of a write cycle, the device will automatically write the latched data using an internal control timer. The end of a write cycle can be detected by DATA POLLING of I/O7. Once the end of a write cycle has been detected, a new access for a read or write can begin.

Atmel’s AT28C64B has additional features to ensure high quality and manufacturability. The device utilizes internal error correction for extended endurance and improved data retention characteristics. An optional software data protection mechanism is available to guard against inadvertent writes. The device also includes an extra 64 bytes of EEPROM for device identification or tracking.

2. Pin Configurations

  2.1 28-lead PDIP, 28-lead SOIC Top View

  2.2 32-lead PLCC Top View

   Note: PLCC package pins 1 and 17 are Don’t Connect.

  2.3 28-lead TSOP Top View

3. Block Diagram

4. Absolute Maximum Ratings*

Temperature Under Bias................................ -55°C to +125°C

Storage Temperature ..................................... -65°C to +150°C

All Input Voltages

(including NC Pins)

with Respect to Ground ...................................-0.6V to +6.25V

All Output Voltages

with Respect to Ground .............................-0.6V to VCC + 0.6V

Voltage on OE and A9

with Respect to Ground ...................................-0.6V to +13.5V

*NOTICE: Stresses beyond those listed under “Absolute Maximum Ratings” may cause permanent damage to the device. This is a stress rating only and functional operation of the device at these or any other conditions beyond those indicated in the operational sections of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability
