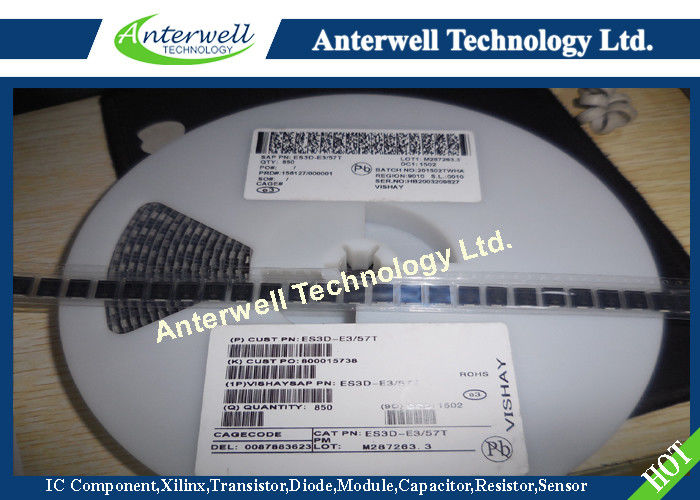

Surface Mount Ultrafast Plastic Rectifier ES3D-E3/57T

FEATURES

• Glass passivated chip junction

• Ideal for automated placement

• Ultrafast recovery times for high efficiency

• Low forward voltage, low power losses

• High forward surge capability

• Meets MSL level 1, per J-STD-020, LF maximum

  peak of 260 °C

• Solder dip 260 °C, 40 s

• Component in accordance to RoHS 2002/95/EC

  and WEEE 2002/96/EC

TYPICAL APPLICATIONS

For use in high frequency rectification and

freewheeling application in switching mode converters

and inverters for consumer, computer and

telecommunication.

MECHANICAL DATA

Case: DO-214AB (SMC)

Epoxy meets UL 94V-0 flammability rating

Terminals: Matte tin plated leads, solderable per

J-STD-002 and JESD22-B102

E3 suffix for consumer grade, meets JESD 201 class

1A whisker test, HE3 suffix for high reliability grade

(AEC Q101 qualified), meets JESD 201 class 2

whisker test

Polarity: Color band denotes cathode end
