| Collector-Base Voltage: | -160 V | Collector-Emitter Voltage: | -120 V |
|---|---|---|---|
| Emitter-Base Voltage: | -6 V | Collector Current (DC): | -8 A |
| Collector Dissipation: | 80 W | Junction Temperature: | 150°C |
| Storage Temperature: | -55~150°C | Package: | SC-65 |
| Highlight: | npn smd transistor,multi emitter transistor |
||

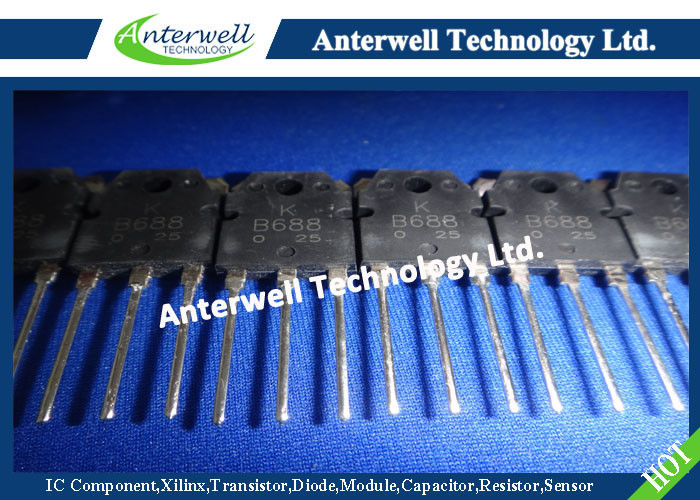

PNP PLANAR SILICON TRANSISTOR 2SB688
AUDIO POWER AMPLIFIER DC TO DC CONVERTER
* High Current Capability
* High Power Dissipation
* Complementary to 2SD718
ABSOLUTE MAXIMUM RATING (Ta=25°C)
| Characteristic | Symbol | Rating | Unit |
|
Collector-Base Voltage Collector-Emitter Voltage Emitter-Base voltage Collector Current (DC) Collector Dissipation Junction Temperature Storage Temperature |
VCBO VCEO VEBO IC PC Tj Tstg |
-160 -120 -6 -8 80 150 -55~150 |
V V V A W °C °C |
ELECTRICAL CHARACTERISTICS (Ta=25°C)
| Characterristic | Symbol | Test Condition | Min | Typ | Max | Unit |
|
Collector Base Breakdown Voltage Collector Emitter Breakdown Voltage Emitter Base Breakdown Voltage Collector Cutoff Current Emitter Cutoff Current *DC Current Gain DC Current Gain Collector- Emitter Saturation Voltage |
BVCBO BVCEO BVEBO ICBO IEBO hFE1 hFE2 VCE(sat) |
IC=-5 mA IE=0 IC=-10 mA RBE=∞ IE=-5mA IC=0 VCB=-60V IE=0 VEB=-4V IC=0 VCE=-5V IC=-1A VCE=-5V IC=-3A IB=-0.3A |
-160 -120 -6
55 50
|
-0.1 -0.1 160
-1.5
|
V V V mA mA
V
|
